DUOPRESS Automatic High Speed Die Cutting Machine With Heating System
- Invention patent: the world’s first multi-station die-cutting machine independently controlled by servo motors
- Flexible customization for complex process requirements
- Ensure high accuracy and hot stamping effects wihle achieving speeds up to 7,200 sheets/h
- Overview
- Technical Parameters
- Related Products
Product Description
Dayuan MHK-series DUOPRESS automatic die cutting machine is designed for one-pass processing, integrating foil stamping, die cutting, and stripping into a single, highly efficient operation—perfect for complex foil stamping requirements in premium cigarette packaging, liquor packaging, and other high-end applications. By maximizing productivity and minimizing labor costs, it delivers exceptional value and enhanced competitiveness, making it the ultimate choice for the high-end post-press market.
Flexible Customization:
• Modular process configuration tailored to product requirements, with each unit independently controlled by servo motors for optional single-unit operation.
• Features holographic foil stamping, triple foil stamping, deep embossing, die cutting and waste stripping to meet diverse production needs and significantly enhance efficiency.
Reliable Performance:
• Maximum speed: 7,200 sheets/hour; maximum pressure: 600 tons.
• Equipped with a proprietary foil stamping control system and foil feeding system, supporting both horizontal and vertical stamping to meet premium quality demands.

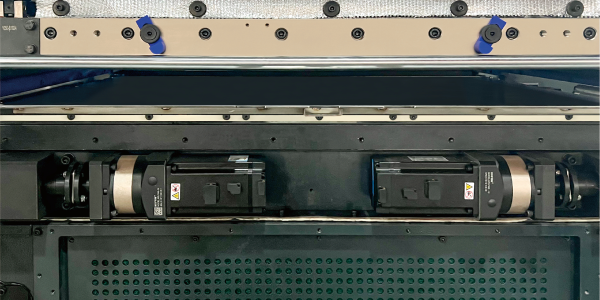

• Patented gripper bar rear-positioning servo control system guarantees permanent precision of ±0.075mm.
Outstanding Cost-Effectiveness:
• Robust cast-iron frame ensures stability.
• User-friendly hunman-machine interface for intuitive and efficient operation.
• Comprehensive spare parts supply chain for after-sales support.
 |
 |
 |

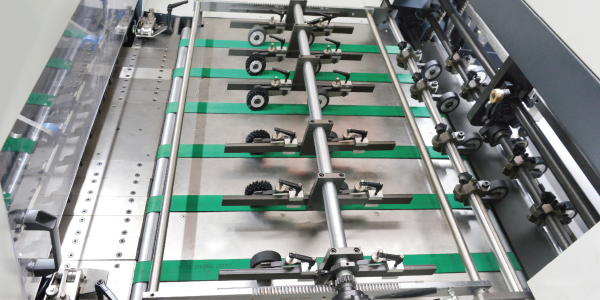

Feeder |
Conveying unit |

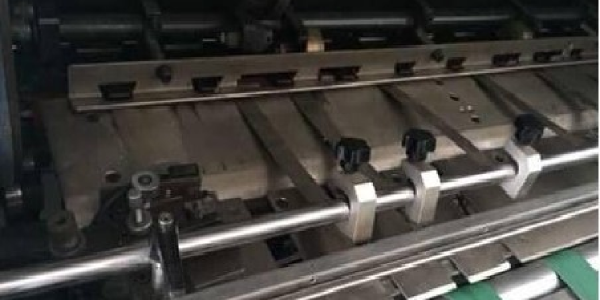

Front gauge & side gauge |
 |
 |
 |

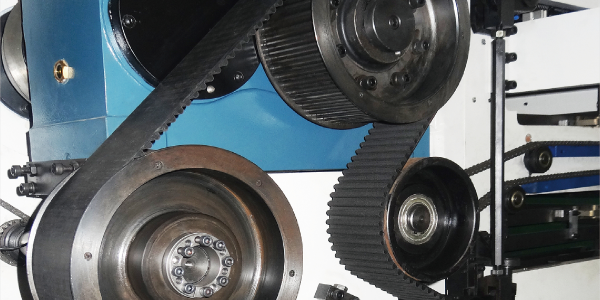

Timing belt driven device |
Mould quick locking device |

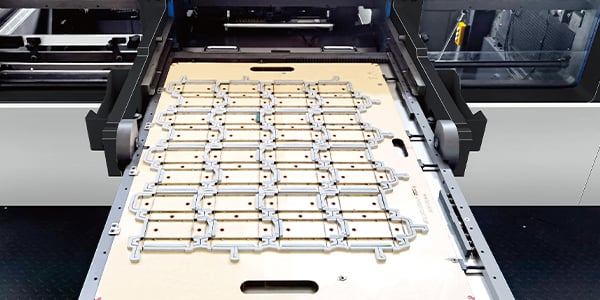

Cutting plate microadjustment device |
 |
 |
 |
Servo controlled gripper bar positioning device |
Fine-tuned honeycomb plate |

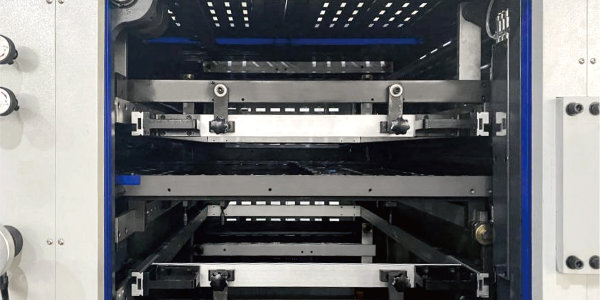

Stripping section |
 |
 |
 |

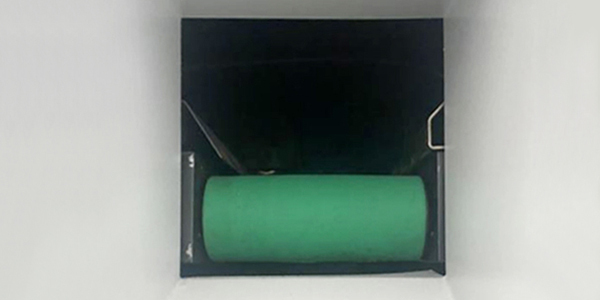

Gripper waste removal device |

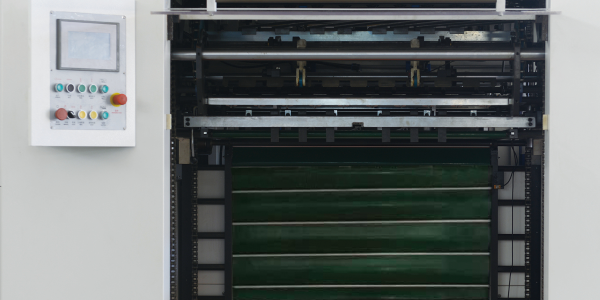

Auto non-stop collecting device |

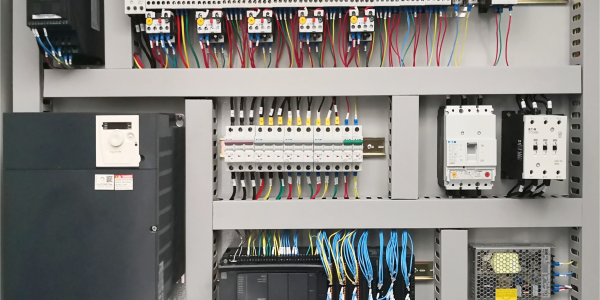

Electrical unit |
|
|
|

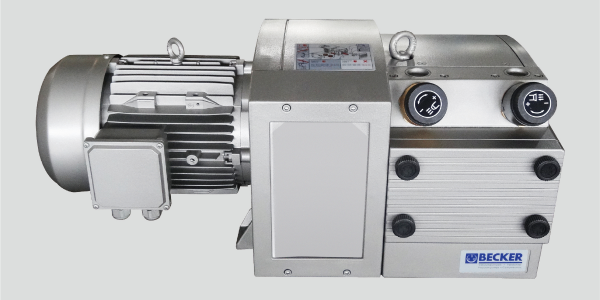

Germany vacuum pump |

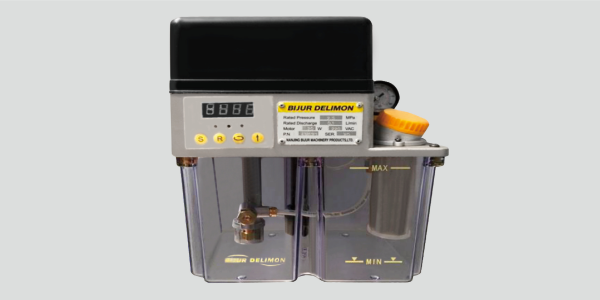

Concentrate lubrication |

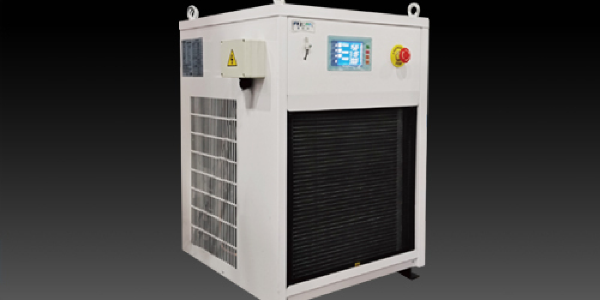

Cooling and lubrication mechanism of the main engine |
Technical Parameters
|
Model |
MHK-2S920TT |
MHK-2S920TRC MHK-2S920TMC |
MHK-2S920RRC MHK-2S920RMC |
|
Maximum Sheet Size |
920×650 |
920×650mm |
920×650mm |
|
Minimum Sheet Size |
360×320mm |
360×320mm |
360×320mm |
|
Maximum Cutting Size |
920×630mm |
920×630mm |
920×630mm |
|
Maximum Stamping Size |
900×600mm |
900×600mm |
/ |
|
Maximum Heating Size |
900×600mm |
900×600mm |
900×600mm |
|
Minimum Gripper Margin |
9-17mm |
9-17mm |
9-17mm |
|
Minimum Width of Cuts |
/ |
10-18mm |
10-18mm |
|
Inner Chase Size |
1008×670mm |
1008×670mm |
1008×670mm |
|
Stock Range |
Cardboard: 80-2000g/m²,0.1-2mm |
Cardboard: 80-2000g/m²,0.1-2mm |
Cardboard: 80-2000g/m²,0.1-2mm |
|
Die Cutting Accuracy |
≤±0.075mm |
≤±0.075mm |
≤±0.075mm |
|
Common Stamping Accuracy |
≤±0.1mm |
≤±0.1mm |
/ |
|
Hologram positioning stamping accuracy |
≤±0.1mm |
≤±0.1mm |
/ |
|
Heating Accuracy |
≤±0.075mm |
≤±0.075mm |
≤±0.075mm |
|
Press 1 Max.Cutting Force |
600T |
600T |
600T |
|
Press 2 Max.Cutting Force |
600T |
600T |
600T |
|
Max.Working Speed |
7200s/h |
7200s/h |
7200s/h |
|
Maximum Pile Height at Feeder-Normal Mode |
1500mm |
1500mm |
1500mm |
|
Maximum Pile Height at Delivery |
1300mm |
1300mm |
1300mm |
|
Max.Gold Doil Diameter |
φ250mm Longitudinal，φ200mm Transeversal |
φ250mm Longitudinal，φ200mm Transeversal |
/ |
|
Electric-heated System |
20 Heating zones，40-180℃ Adjustable |
20 Heating zones，40-180℃ Adjustable |
20 Heating zones，40-180℃ Adjustable |
|
Foil Width |
20-900mm |
20-900mm |
/ |
|
Press 1 Foil Advance Shafts |
3 Longitudinal+2 Transversal |
3 Longitudinal+2 Transversal |
Electric-heated System |
|
Press 2 Foil Advance Shafts |
3 Longitudinal+2 Transversal |
Electric-heated System+Stripping(TRC) |
Electric-heated System+Stripping(RRC) |
|
Die Cutting Stripping(TMC) |
Die Cutting Stripping(RMC) |
||
|
Full Load Wattage |
77KW |
65KW / 52KW |
56KW / 42KW |
|
Air Requirement |
0.6-0.7MPa，≥1m³/min |
0.6-0.7MPa，≥1m³/min |
0.6-0.7MPa，≥1m³/min |
|
Net Weight of Machine |
28T |
27T |
26T |
|
Machine Dimensions(Including Die Preloader)(L×W×H) |
7615×6960×2658mm |
7615×6960×2658mm |
7615×6960×2658mm |
