SMC-1100

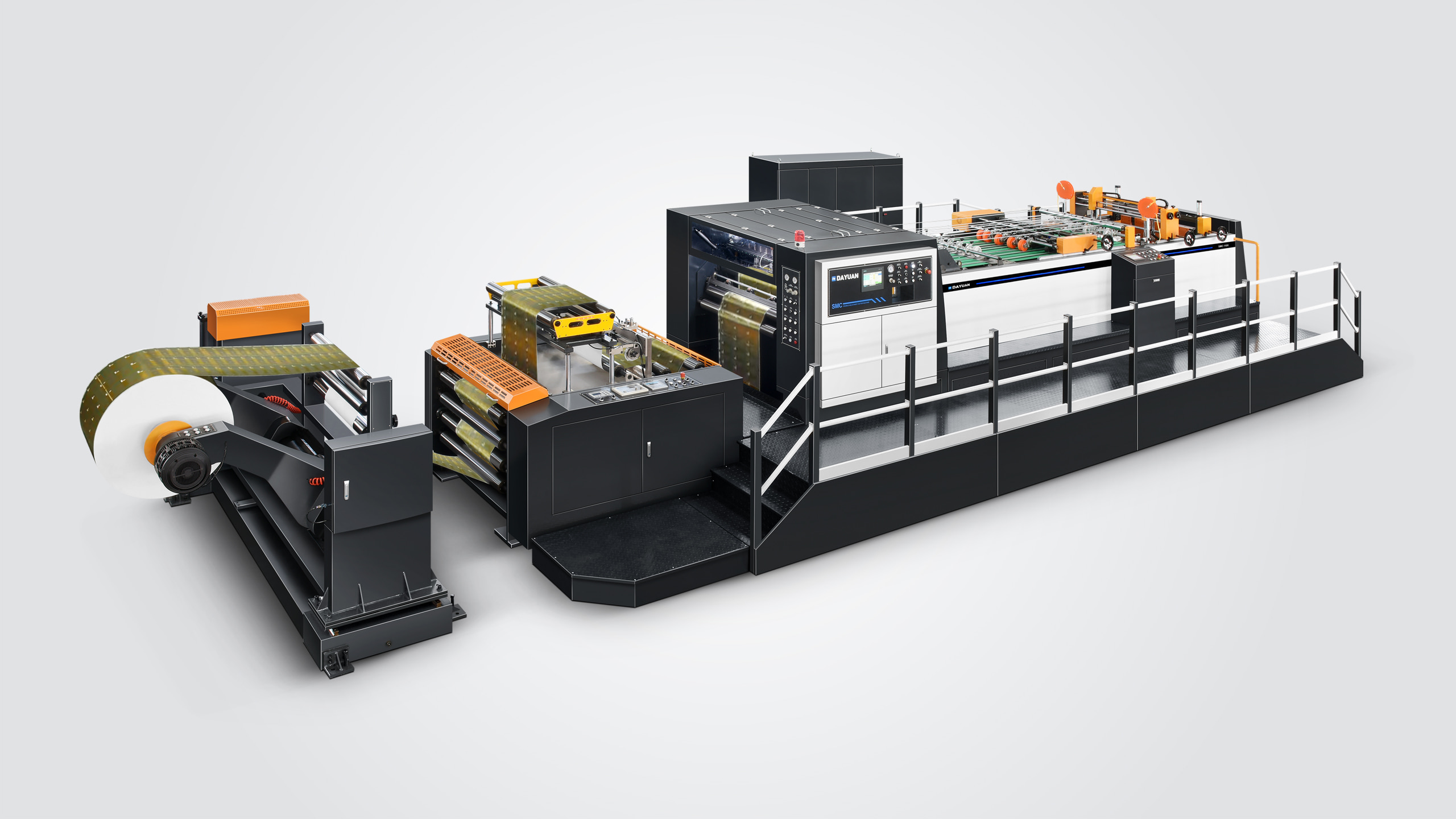

Cigarette Packing Servo Precision Double Helix High Speed Sheet Cutter Machine With Photoelectric Tracking
- Specifically developed for the cigarette packaging industry
- Cutting accuracy: ±0.1mm
- Maximum speed: 540 cuts per minute
- Overview
- Technical Parameters
- Specifications
- Related Products
Product Description
This high-precision, high-efficiency SMC-1100 Servo Precision Double Helix High Speed Sheet Cutter Machine With Photoelectric Tracking is specifically developed for the cigarette packaging industry, featuring advanced label-following cutting capabilities. Integrating multiple patented technologies, it is equipped with a self-developed label-tracking control system, multi-stage edge correction system, and embedded double helix knife design. Simply by using the printed color marks as a reference and inputting the distance between two marks, the machine achieves fully automated alignment across all sections—from the unwinding stand to the collection unit—performing automatic anti-curling, edge correction, slitting, and continuous non-stop auxiliary paper collection in one seamless operation.
 |
 |
Slitting system |
Photoelectric tracking system |
|
|
3 times delivery (no impression line) |
Non-stop rolling curtain paper delivery device |
Technical Parameters
|
Model |
SMC-1100 |
|
Model of cutting paper |
Double rotary sheeter |
|
Thickness of cutting paper |
80-1000gsm |
|
Cutting length range |
450-1450mm |
|
Cutting precision |
Cutting length≤1000mm:+0.1mm Cutting length>1000mm:±0.1% |
|
Max. cutting meter speed |
330m/min |
|
Max. cutting speed |
540cuts/min |
|
Max. photoelectric tracking cutting meter speed |
150m/min |
|
Max. photoelectric tracking cutting speed |
220cuts/min |
|
Max. scroll diameter |
1800mm |
|
Max. paper cutting width |
1100(45”)mm |
|
Max. paper piling height |
1400mm |
|
The request for air compressor |
0.8MPa |
|
Power consumption |
380V/220V×50HZ |
|
G.W. |
18000kgs |
|
Full-load Power |
75kw |
Specifications
|
SMC-1100 |
||
|
Cutting length |
Meter speed (m/min) |
Knife speed (cuts/min) |
|
450 |
195 |
435 |
|
500 |
240 |
480 |
|
600 |
325 |
540 |
|
700 |
330 |
475 |
|
800 |
330 |
410 |
|
900 |
325 |
365 |
|
1000 |
310 |
310 |
|
1100 |
300 |
275 |
|
1200 |
300 |
250 |
|
1300 |
305 |
235 |
|
1400 |
315 |
235 |
|
1500 |
330 |
220 |
|
1600 |
335 |
210 |
