1900servo precision high speed sheet cutter-0

GM-1100/1500/1700/1900
Servo Precision High Speed Sheet Cutter

  • Intelligent system with high precision
  • Customizable cutting width and paper stand
  • Maximum speed: 400 cuts per minute
  • Overview
  • Technical Parameters
  • Related Products

Product Description

GM-series Servo Precision High Speed Sheet Cutter has internationally leading technology and high-end intelligent configurations, efficiently performing automated functions such as automatic feeding, tension control, anti-curling, diagonal correction, slitting and edge trimming. The paper sheet cutting machine adapts to various paper specification requirements, while its intelligent control system and high precision deliver exceptional productivity for users. Primarily applied in paper mills, printing houses, and packaging paper processing, its core processes include: unwinding-cutting-conveying-collecting. The maximum paper roll width ranges from 1100mm to 1900mm. The paper stand offers customizable options from single to multiple rolls. Dayuan will provide optimal solutions tailored to your production needs to maximize operational efficiency. The automatic paper roll to sheet cutting machine achieves a maximum speed of 400 cuts/minute.



37-GM-1100_1500_1700_1900-Auto anti curve.jpg.png 37-GM-1100_1500_1700_1900-Paper pre-press device.jpg.png 37-GM-1100_1500_1700_1900-Three sets of slitting knife are used for trimming and middle slitting.jpg.png

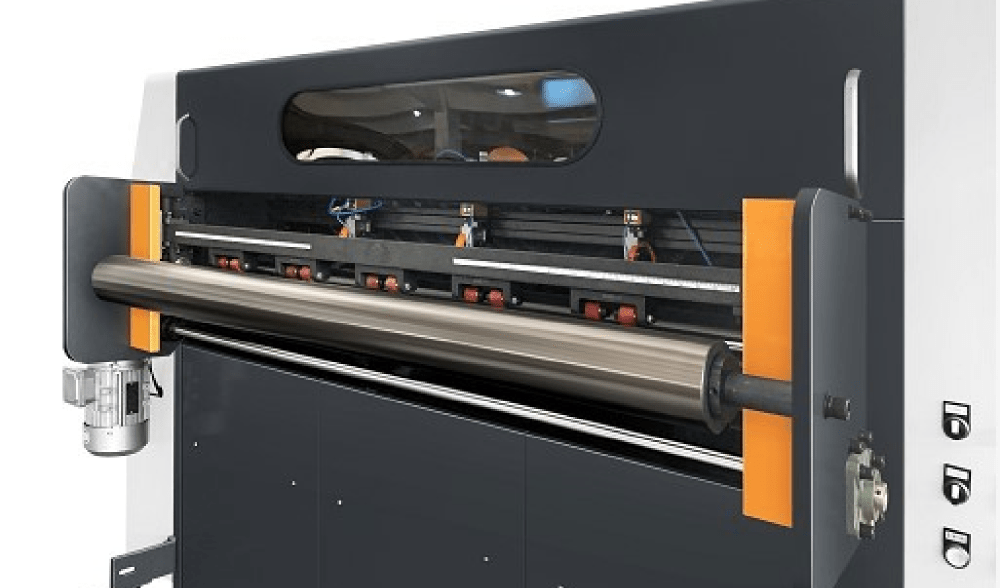

Auto anti curve

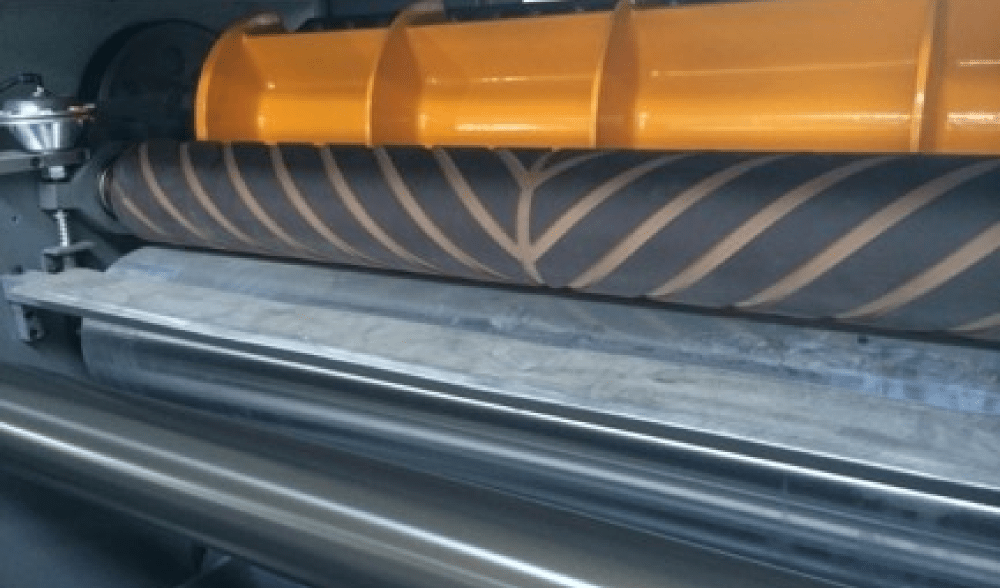

Paper pre-press device

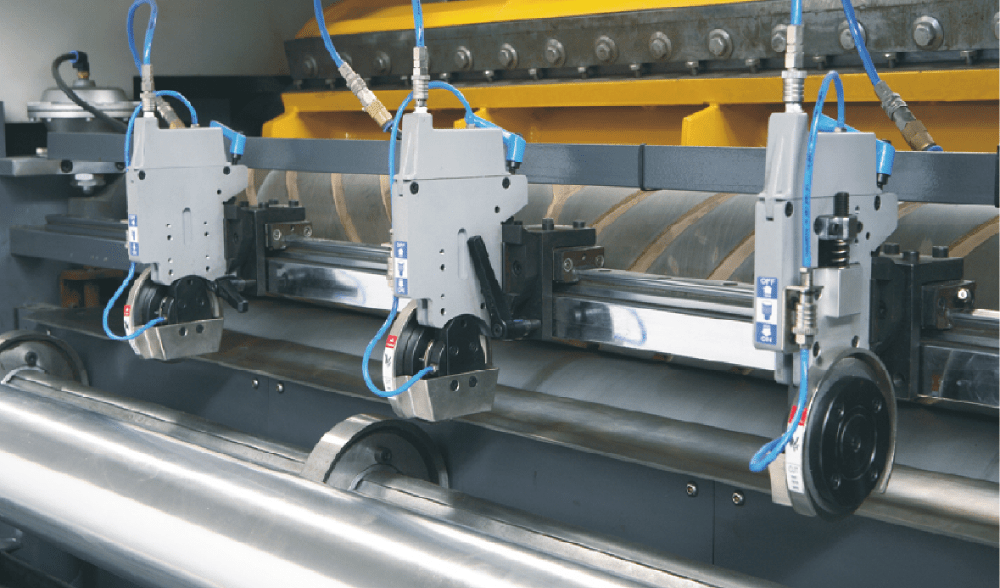

Three sets of slitting knife are used
for trimming and middle slitting

37-GM-1100_1500_1700_1900-Cutting knife unit.jpg.png 37-GM-1100_1500_1700_1900-Anti-static device.jpg.png 37-GM-1100_1500_1700_1900-Conveying unit.jpg.png

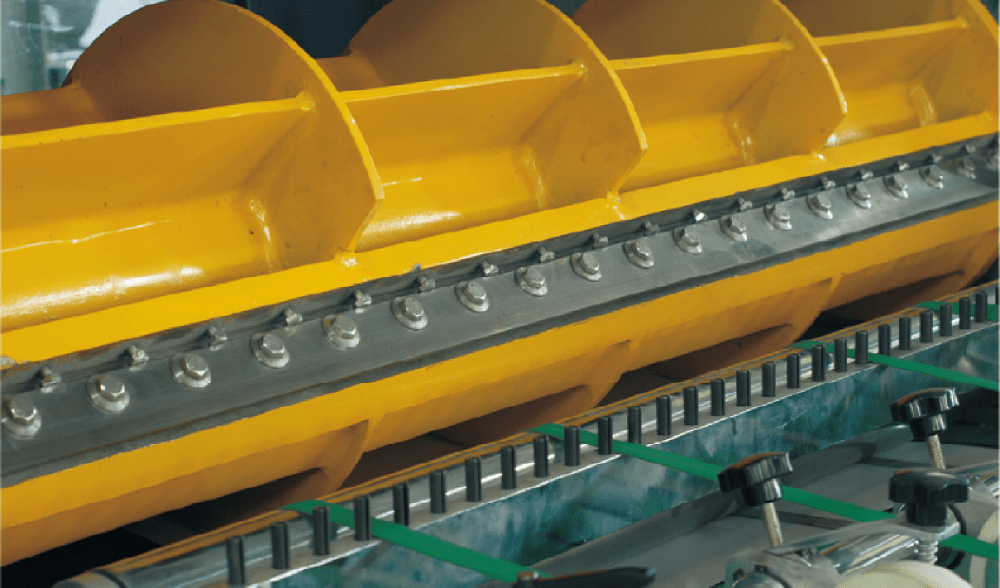

Cutting knife unit

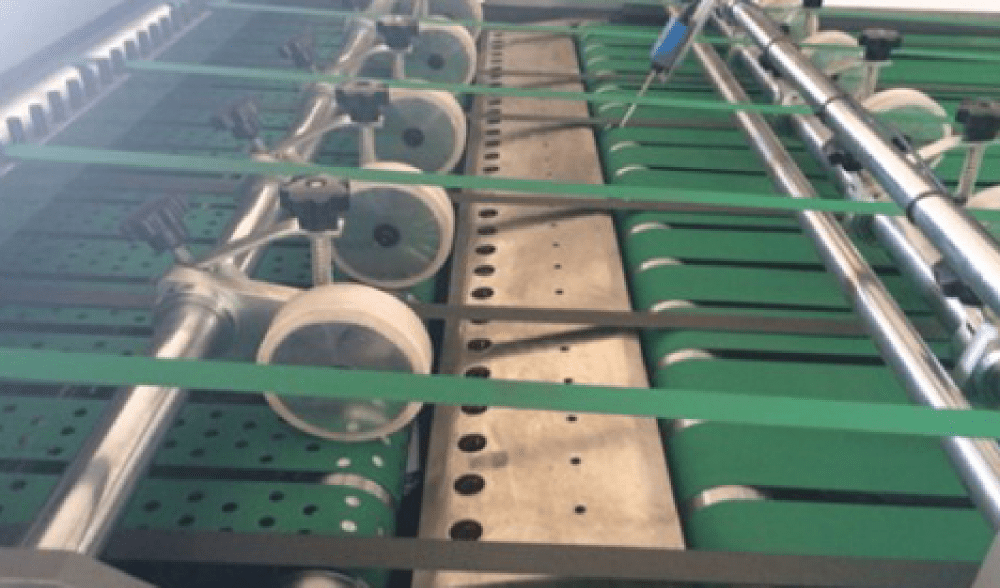

Anti-static device

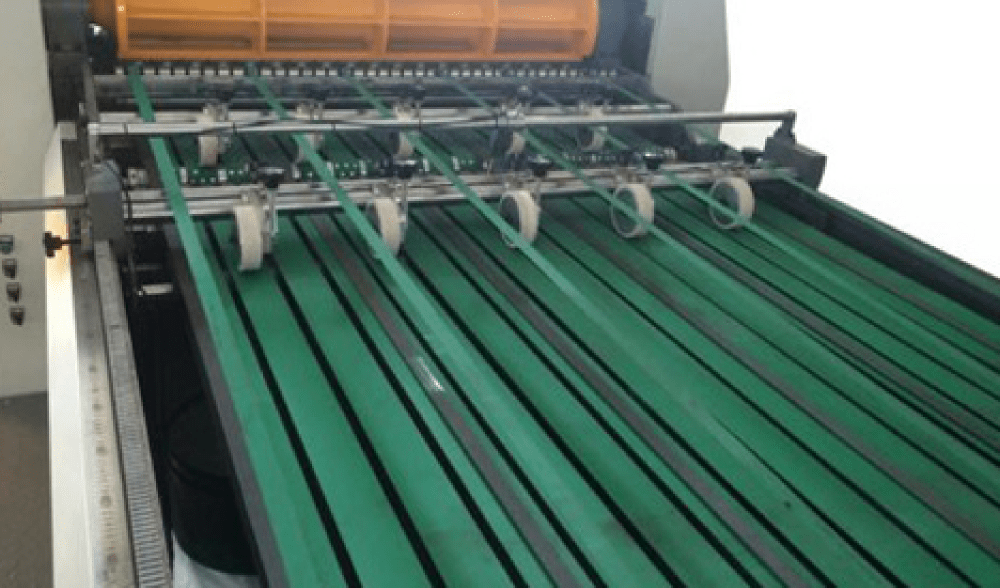

Conveying unit



Technical Parameters

Model

GM-1100

GM-1500

GM-1700

GM-1900

Model of cutting paper

The up knife cut reciprocally and the down knife is fixed

Thickness of cutting paper

60-550gsm

Cutting length range

450-1600mm

The format of slitting

2 sheet

Cutting precision

Cutting length≤1000mm:±0.5mm

Cutting length>1000mm:±0.1%

Max. cutting meter speed

350m/min

Max. cutting speed

400cuts/min

Max. scroll diameter

1800mm

Max. paper cutting width

1100(45”)mm

1500(59” )mm

1700(67” )mm

1900(75”)mm

Max. paper piling height

1500mm

The request for air compressor

0.8MPa

Power consumption

380V/220V×50HZ

G.W.

11000kgs/13000kgs/15000kgs/17000kgs

Full-load Power

22/26/30/35kw
