C-950
Automatic Row Stripping Machine
- Fully Automatic Production Cuts Labor Input
- Designed for Post Die Cutting Processing of Paper Products
- No Special Molds Needed, Flexible for Various Sizes & Shapes
- Overview
- Technical Parameters
- Related Products
- FAQ
Product Description
As an innovative solution for post-die-cutting processes, this machine features a full servo system, automatic collection, palletizing, and non-stop operation. It integrates automatic waste stripping, product collection, and scrap discharging into one integrated system.
It offers multiple advantages:
•Easy setup, compact footprint, high output, and low power consumption.
•It is ideally suited for hang tags, labels, paper cups, pharmaceutical packaging, cosmetic packaging, and other related products.
•Through intelligent automation, the system effectively reduces labor costs, improves product quality, and significantly enhances production efficiency.
Sample

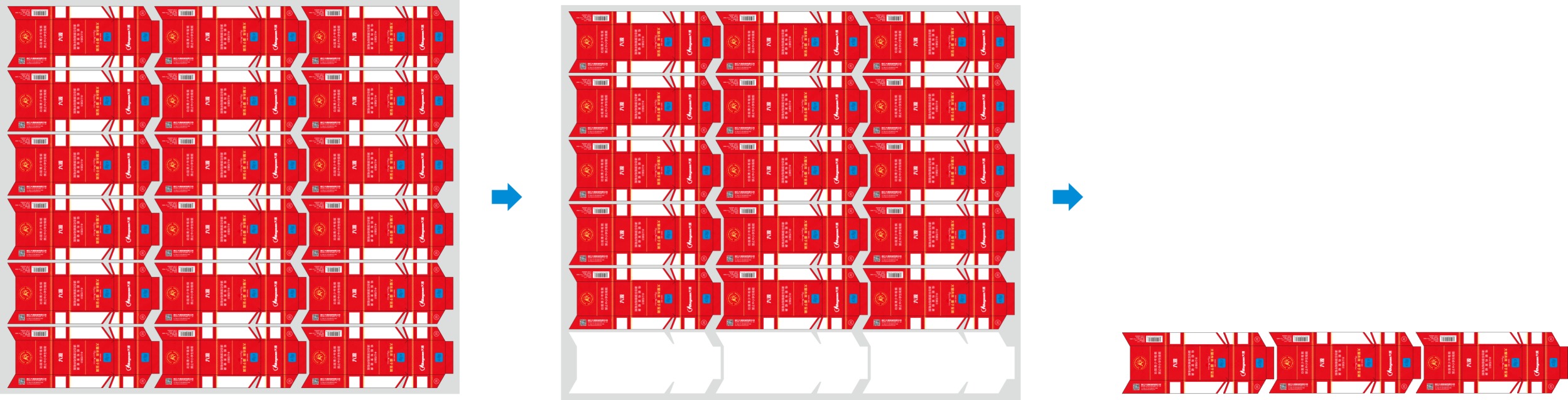

Row by Row Waste Stripping
 |
 |
 |
|

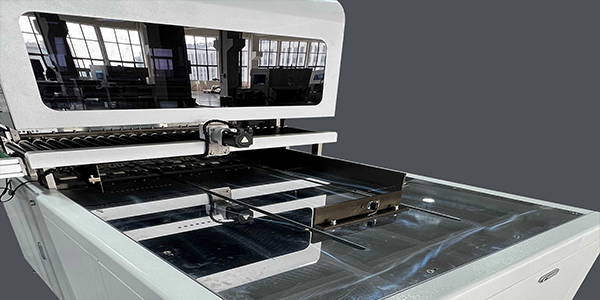

Operation Working Table
|

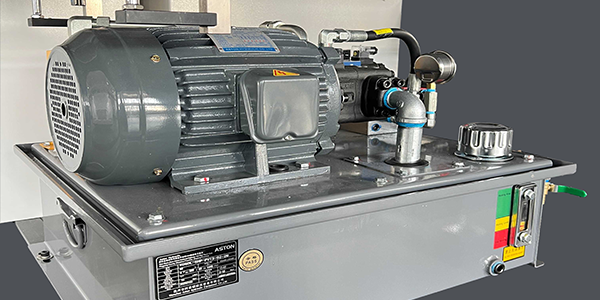

Hydraulic Pump
|

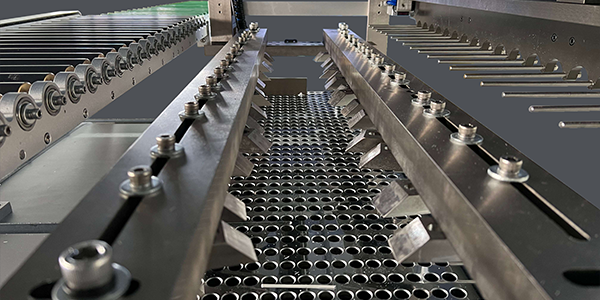

Automatic Product Collection
|
 |
 |
 |
|

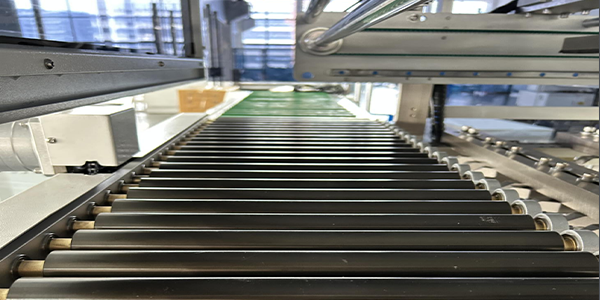

Paper Feed Conveyor
|

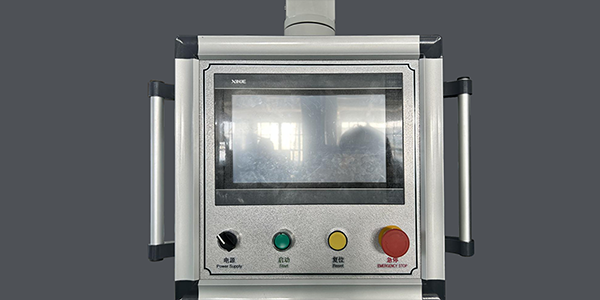

Rotating Touch Screen
|

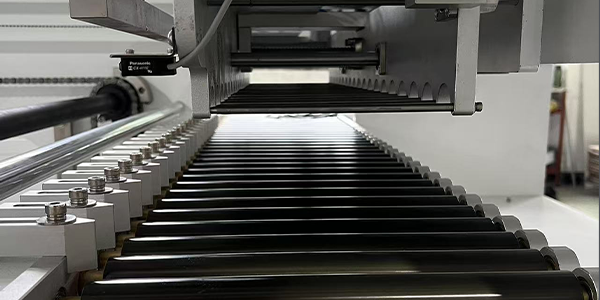

Delivery Roller Conveyor
|
 |
 |
|
|

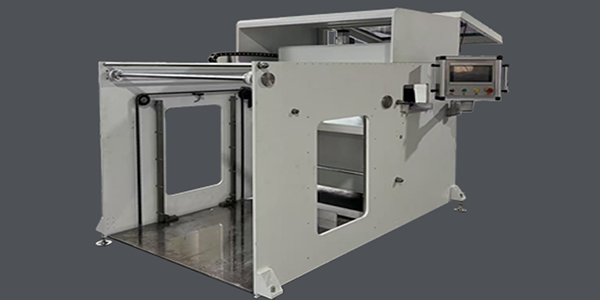

Auto Palletizing Part with Auto Lifting
|

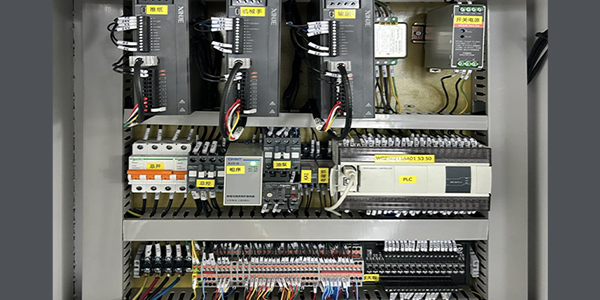

Electrical System
|
Technical Parameters
| Model | C-950 |
| Max. Material Stack Size | 950×950 mm |
| Max. Stack Thickness | 80 mm |
| Min. Stack Thickness | 60 mm |
| Max. Product Size | 930×280 mm |
| Min. Product Size | 90×60 mm |
| Max. Pressure | 50kn |
| Speed | 5 times/min |
| Power Supply | 380V-3 phase-50/60HZ |
| Total Power | 11kw |
| Average Power | 5.5kw |
| Working Air Pressure | 0.5-0.6mpa |
| Air Consumption | 15L/min |
| Overall Dimensions | 2820×3400×2100 mm |
| Weight | 3440 kg |
