MHC-1060CE/1350ACE/1500ACE
Automatic Die Cutting Machine With Stripping
- Advanced 3-frane stripping system
- Suitable for various sizes of cardboard and corrugated paper
- Maximum speed: 7,500 sheets/hour; Maximum pressure: 600 tons
- Overview
- Technical Parameters
- Related Products
Product Description
This die cutting machine with stripping has multiple sheet size options ranging from 1080×780mm to 1500×1110mm, maintaining precision even at maximum operating speeds to significantly boost your production efficiency while reducing operating costs.
Outstanding Productivity:
Maximum speed: 7,500 sheets/hour
Maximum pressure: 600 tons
Adapt to die-cutting processing for various specifications of cardboard and corrugated paper
Equipped with a three-frame stripping system, ensuring burr-free and debris-free output for stable, high-quality finished products.
Superior Cost Efficiency:
Equipped with an automatic oil supply system and precision temperature-controlled lubrication (cooling) system, it maintains optimal oil temperature for consistent, dependable production.
Intuitive HMI (human-machine interface) for user-friendly, error-free operation.
Complete spare parts supply chain ensures worry-free after-sales support.
 |
 |
 |
Feeder |
Conveying unit |
Front gauge & side gauge |
 |
 |
 |
Timing belt driven device |
Plate frame |
Fine-tuned honeycomb panel |
 |
 |
 |

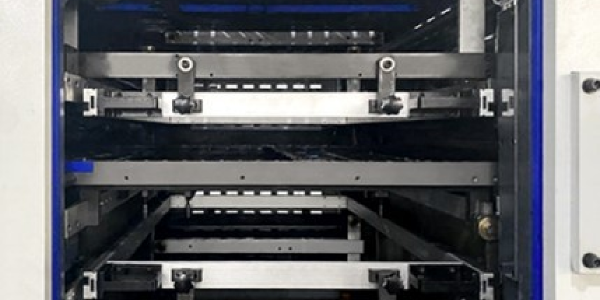

Stripping section |

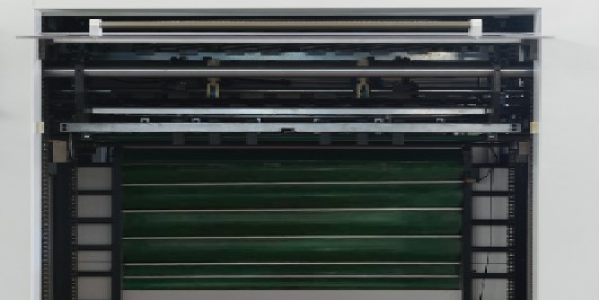

Auto non-stop collecting device |
Electrical unit |
|
|
|
Germany vacuum pump |
Concentrate lubrication |
Cooling and lubrication mechanism of the main engine |
Technical Parameters
|
Model |
MHC-1060CE |
MHC-1060ACE MHC-1060ACER |
MHC-1350ACE MHC-1350ACER |
MHC-1500ACE MHC-1500ACER |
|
Maximum Sheet Size |
1080×780mm |
1080×780mm |
1350×1100mm |
1500×1100mm |
|
Minimum Sheet Size |
400×350mm |
400×350mm |
470×450mm |
470×450mm |
|
Maximum Cutting Size |
1060×760mm |
1060×760mm |
1330×1080mm |
1480×1080mm |
|
Maximum Embossing Area |
/ |
-- / 1060×760mm |
-- / 1330×1080mm |
-- / 1480×1080mm |
|
Minimum Gripper Margin |
9-17mm |
9-17mm |
9-17mm |
9-17mm |
|
Minimum Width of Cuts |
10-18mm |
10-18mm |
10-18mm |
10-18mm |
|
Cutting Rule Height |
23.8mm |
23.8mm |
23.8mm |
23.8mm |
|
Inner Chase Size |
1120×786mm |
1120×786mm |
1360×1118mm |
1510×1118mm |
|
Stock Range |
Cardboard: 80-2000g/m²,0.1-2mm |
Cardboard: 80-2000g/m²,0.1-2mm |
Cardboard: 200-2000g/m², 0.2-2mm Corrugated board: ≤4mm |
Cardboard: 250-2000g/m², 0.25-2mm Corrugated board: ≤4mm |
|
Die Cutting Accuracy |
≤±0.1mm |
≤±0.1mm |
≤±0.15mm |
≤±0.15mm |
|
Embossing Accuracy |
/ |
-- / ≤±0.1mm |
-- / ≤±0.15mm |
-- / ≤±0.15mm |
|
Max.Cutting Force |
300T |
600T |
500T |
500T |
|
Max.Working Speed |
7500s/h |
7500s/h |
5500s/h |
5500s/h |
|
Maximum Feeder Pile Height |
1600mm |
1600mm |
1600mm |
1600mm |
|
Maximum Delivery Pile Height |
1400mm |
1400mm |
1400mm |
1400mm |
|
Electric-heated System |
/ |
-- / 20 Heating zones，40-180℃ Adjustable |
-- / 20 Heating zones，40-180℃ Adjustable |
-- / 20 Heating zones，40-180℃ Adjustable |
|
Main Motor Power |
11KW |
15KW |
22KW |
22KW |
|
Full Load Wattage |
18KW |
21KW / 35KW |
31KW / 49KW |
31KW / 49KW |
|
Air Requirement |
0.6-0.7MPa，≥0.37m³/min |
0.6-0.7MPa，≥0.37m³/min |
0.6-0.7MPa，≥0.75m³/min |
0.6-0.7MPa，≥0.75m³/min |
|
Net Weight of Machine |
17.5T |
20T |
23T |
24T |
|
Machine Dimensions(L×W×H) |
7300×4256×2350mm |
7300×4306×2350mm |
9956×4506×2452mm |
9956×4706×2452mm |
