SMC-1100ZH/1500ZH/1700ZH/1900ZH

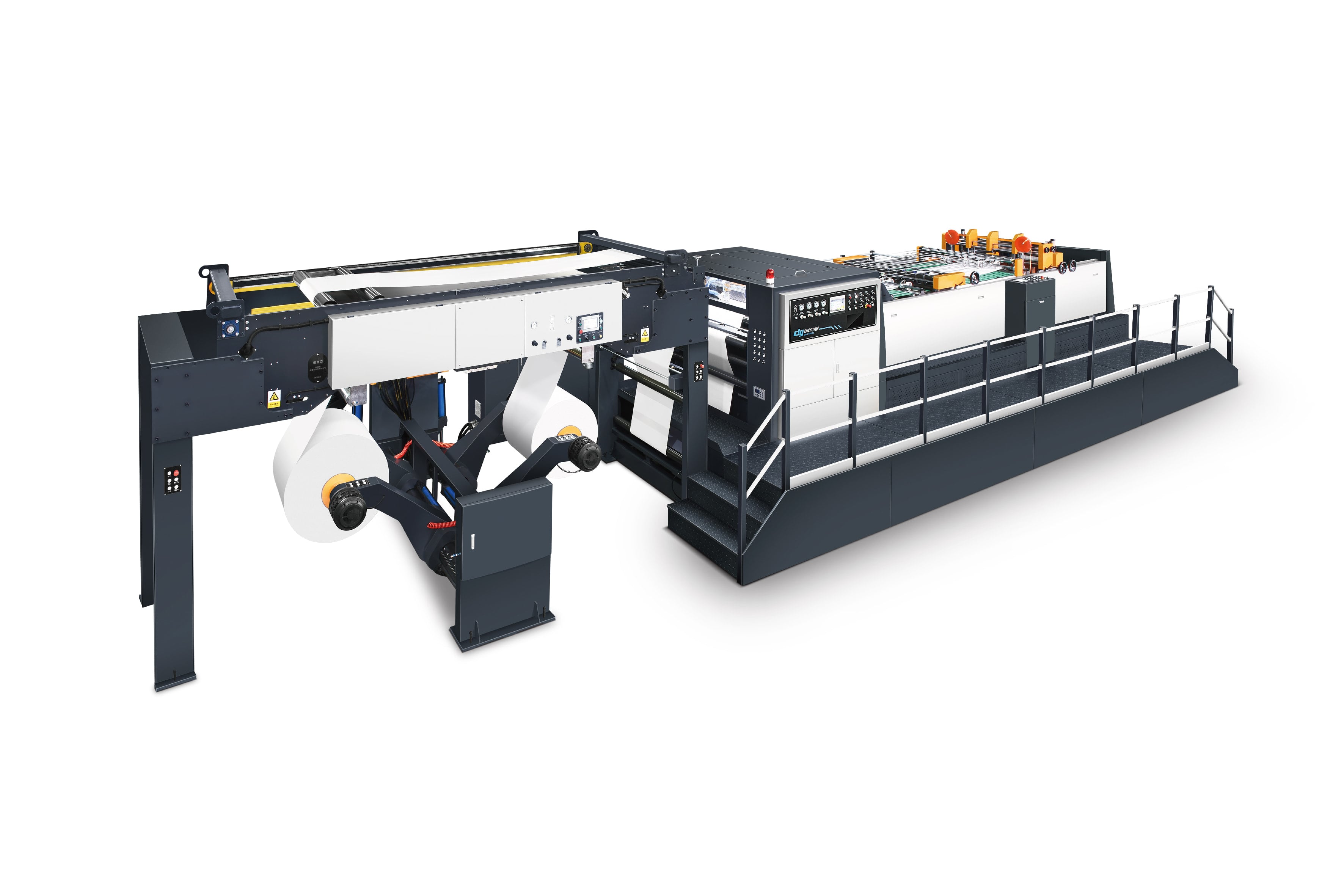

Servo Precision Double Helix High Speed Sheet Cutter Machine With Auto Splicer & Auto Pallet Changer
- Developed from Dayuan SMC-series with automatic splicer & automatic pallet changer
- Dayuan core patent technology - double helix knife design
- Cutting accuracy: ±0.1mm; Maximum speed: 540 cuts per minute
- Overview
- Technical Parameters
- Specifications
- Related Products
- FAQ
Product Description
Based on the technology of SMC-series Servo Precision Double Helix High Speed Sheet Cutter Machine, Dayuan automatic roll to sheet cutting machine SMC-ZH series come equipped with an automatic splicer and an automatic pallet changer. The automatic paper splicing device enables seamless paper splicing during the paper cutting process to avoid waste caused by shutdown and paper roll switching. Additionally, the non-stop auto pallet changer employs a roll-up type auxiliary collection mechanism to automatically switch trays, ensuring continuous production and enhanced efficiency of paper sheet cutting machine.
 |
 |
 |

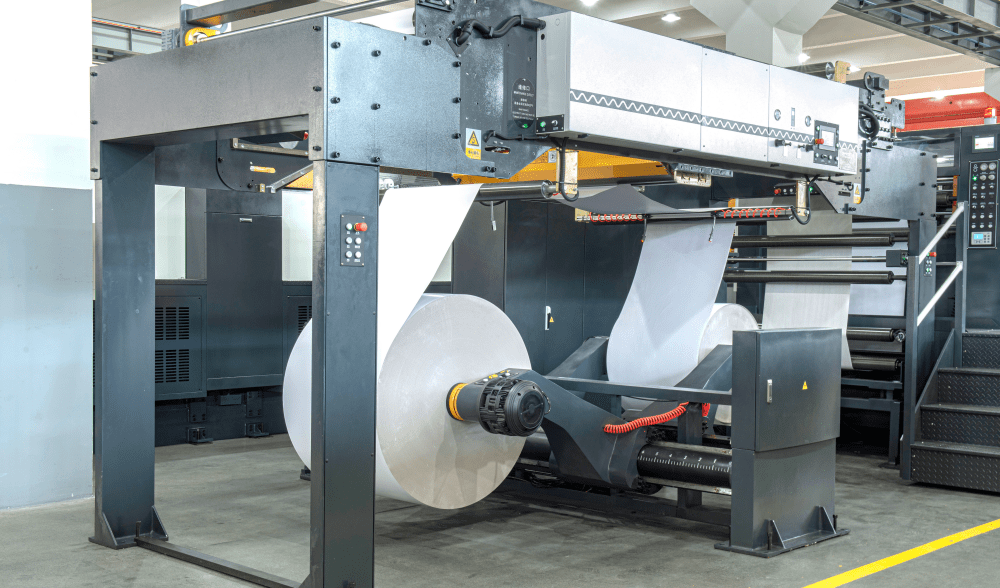

Auto splicer |

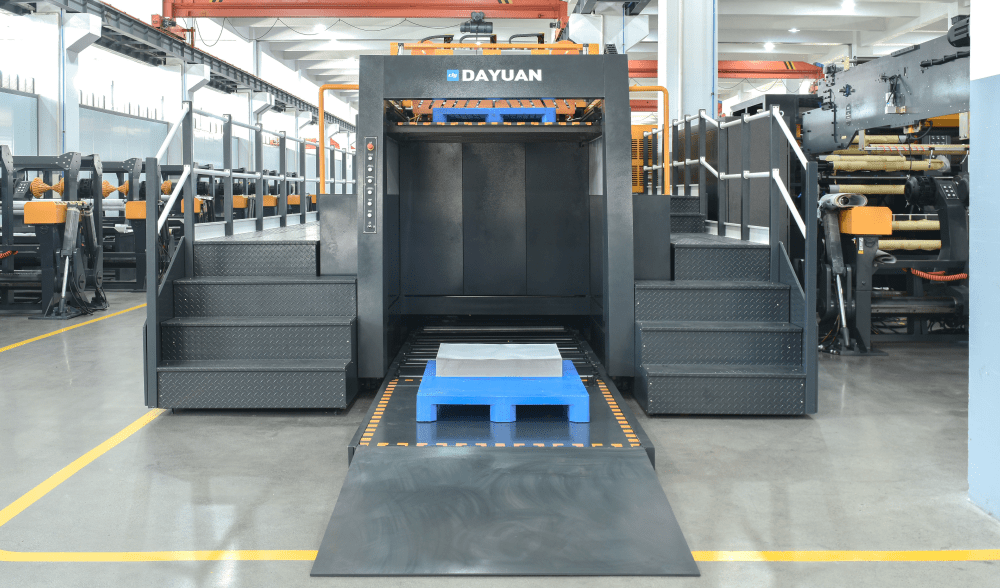

Auto pallet changer |

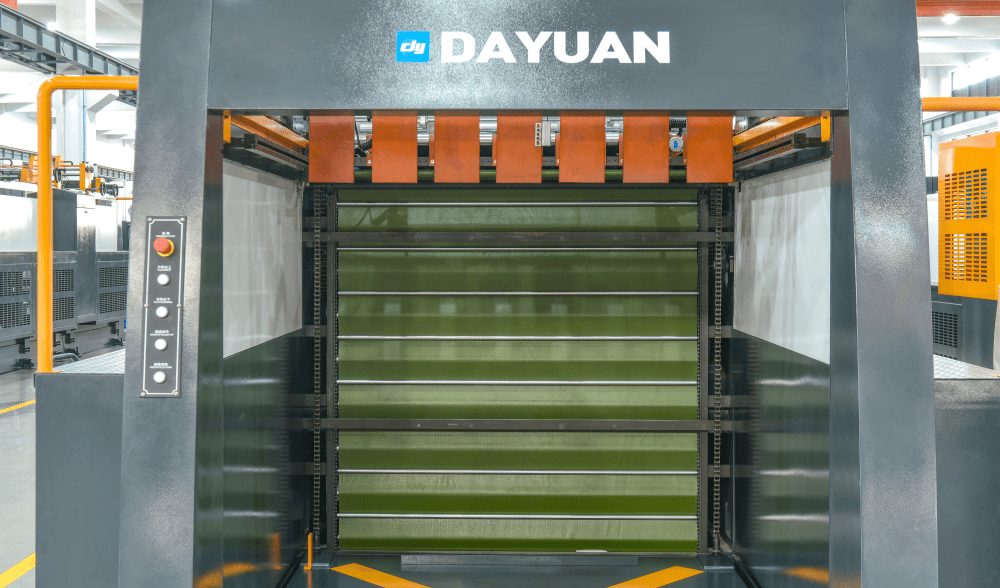

Non-stop rolling curtain paper delivery device |
|
|
|

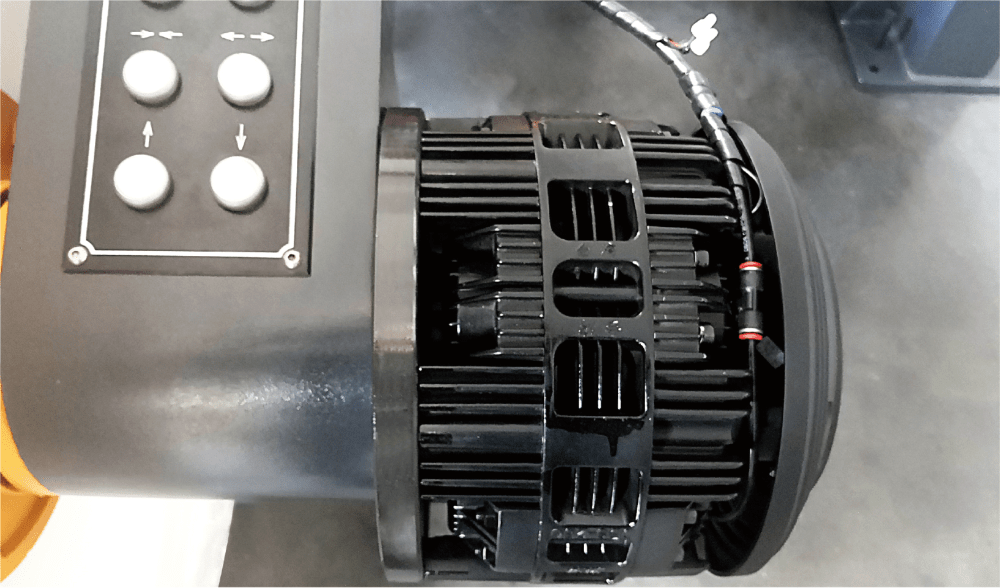

Auto brake |

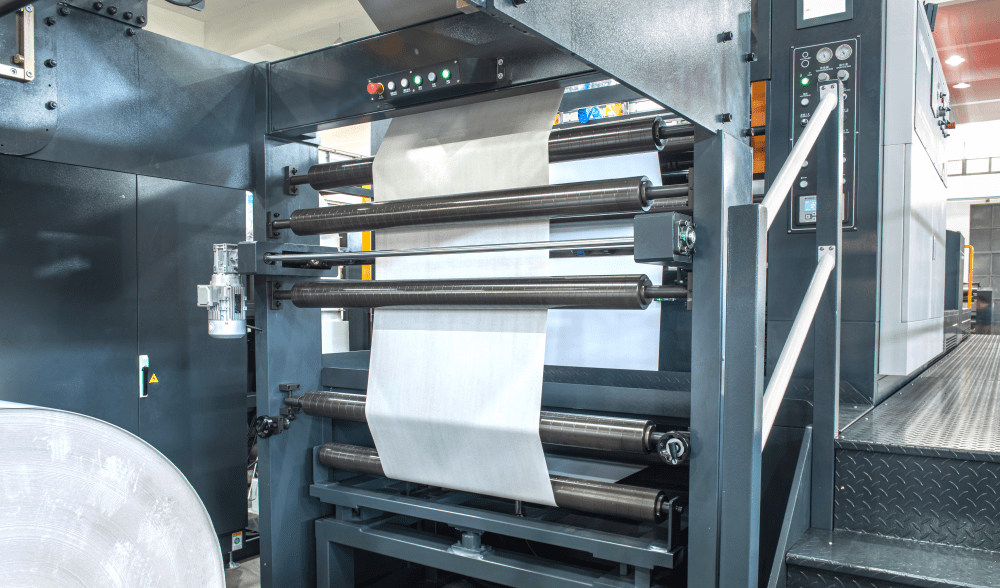

Auto anti curve |

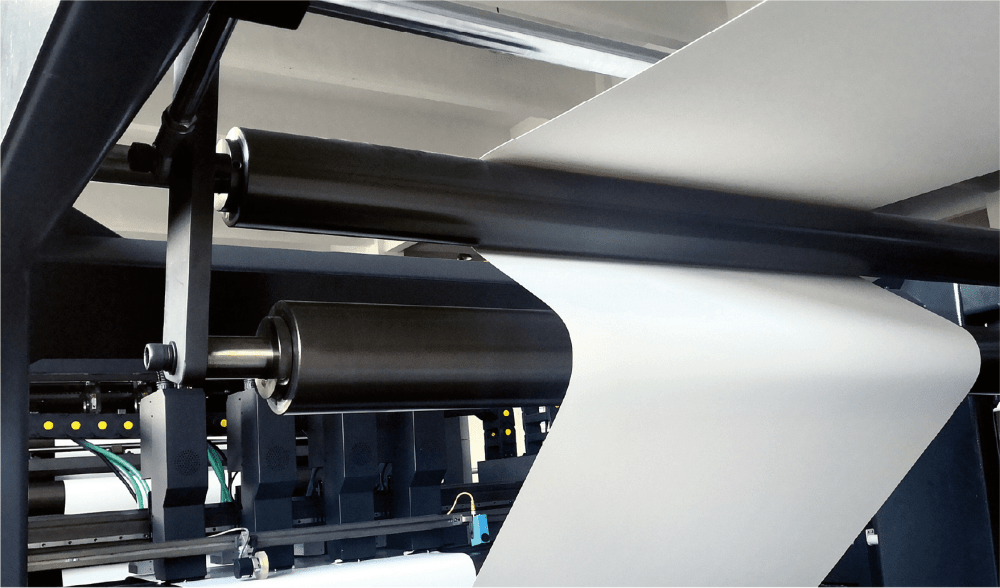

Auto tension control |
|
|
|

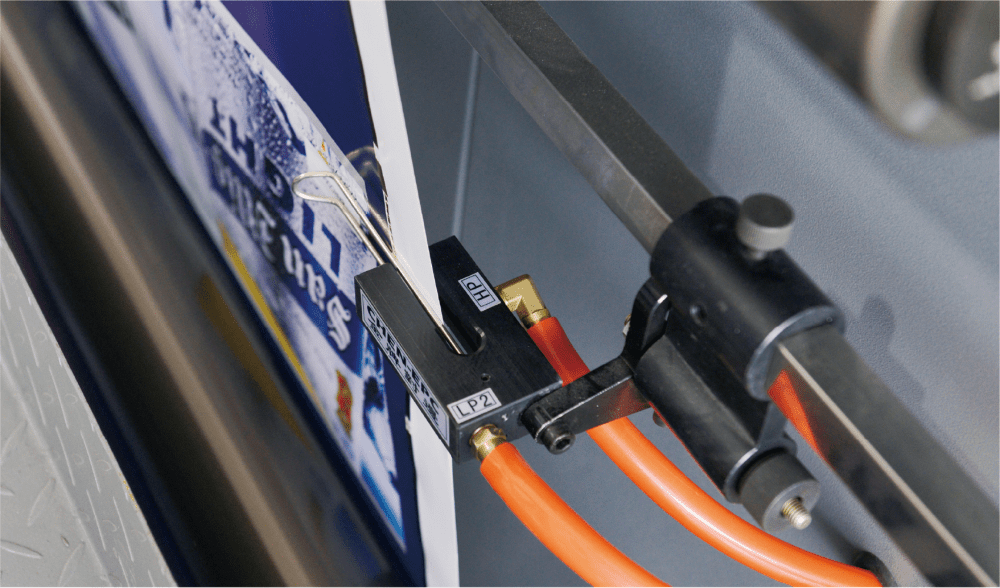

Auto edge position correction |

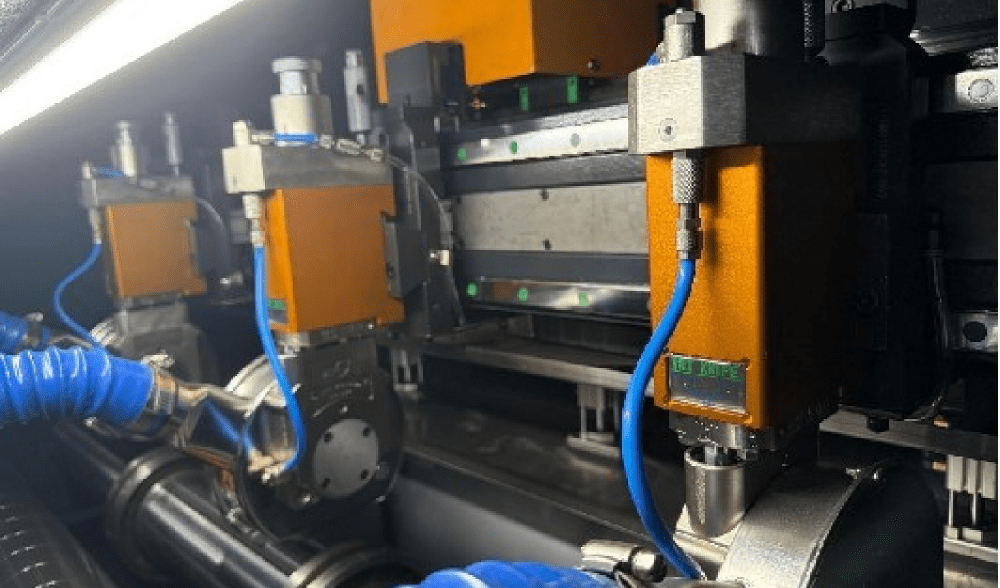

Auto positioning slitting system |

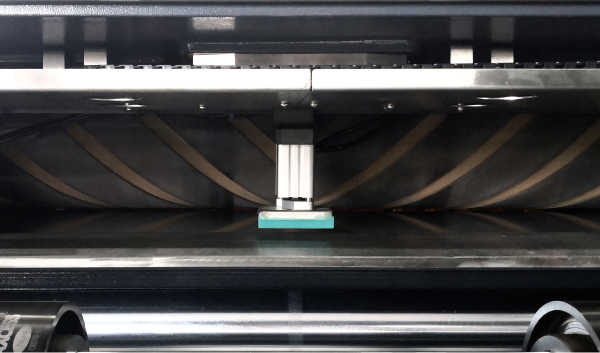

Paper pre-press device |
|
|
|

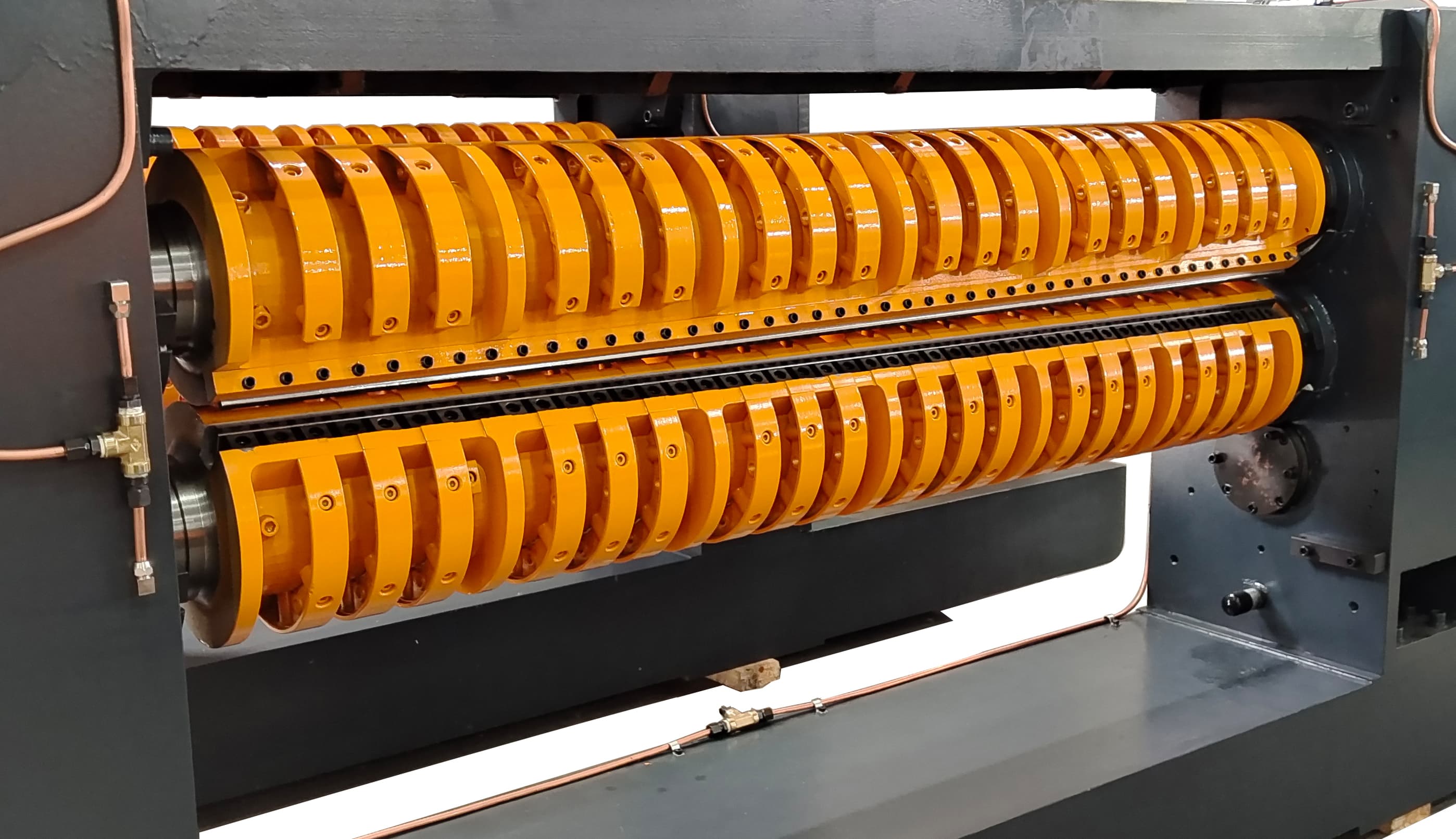

Embedded double helix knife (invention patent) |

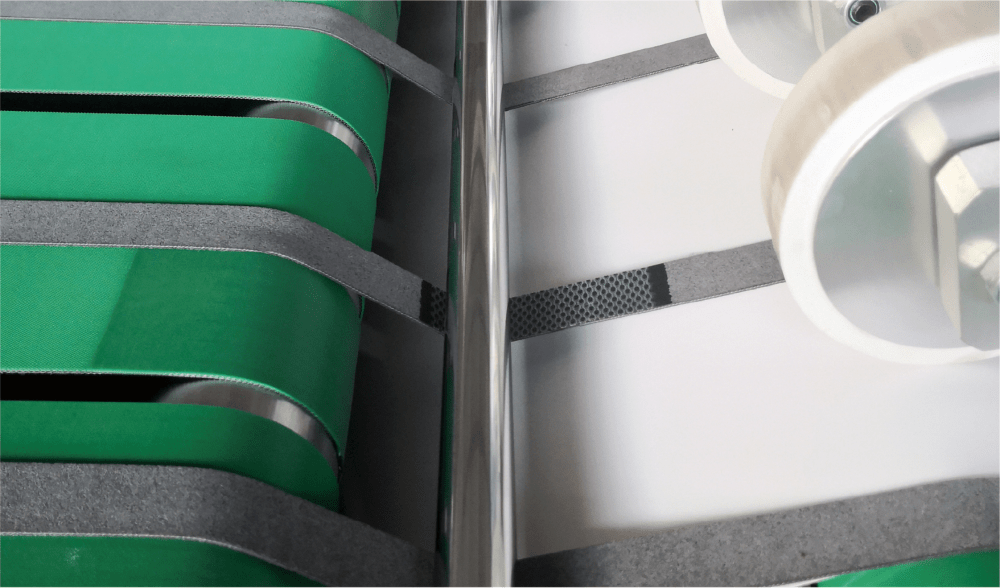

Reject gate |

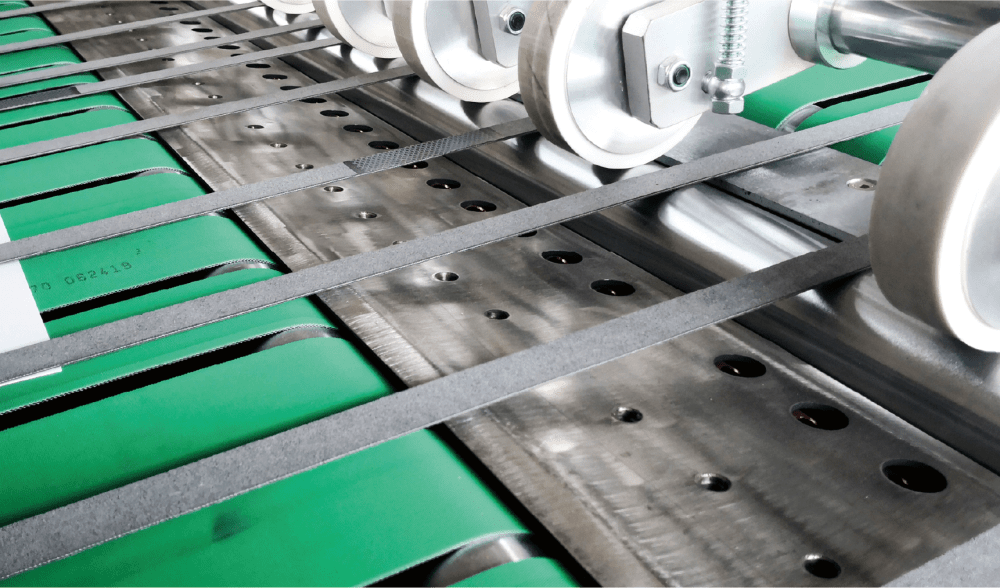

Anti-static device |
|
|
|

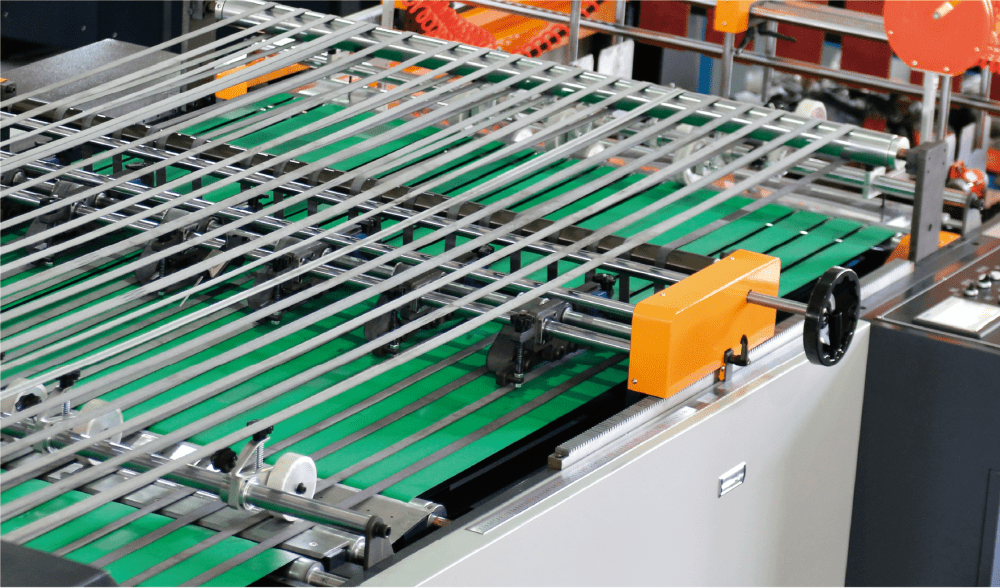

3 times delivery (no impression line) |

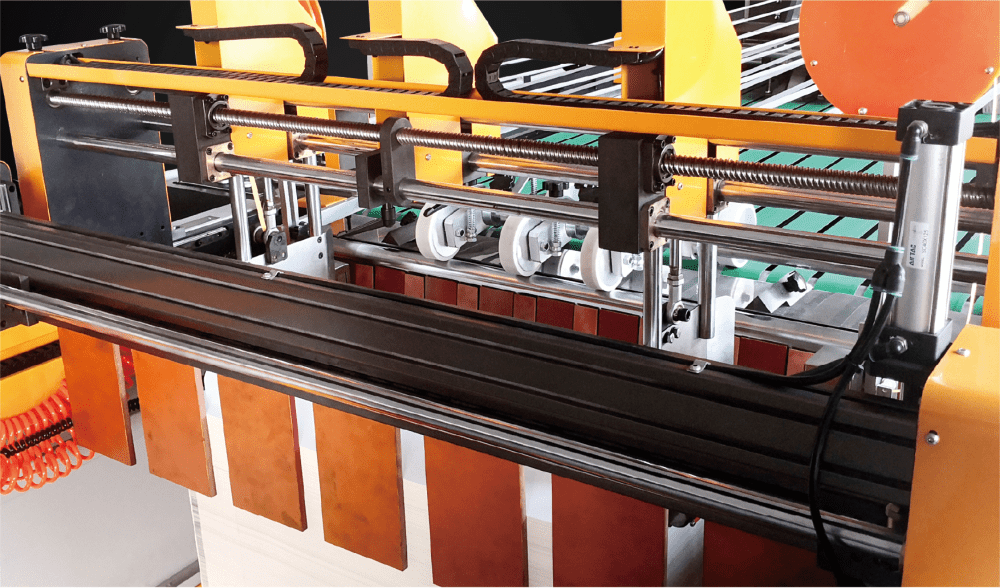

Collecting board pneumatic lifting device |

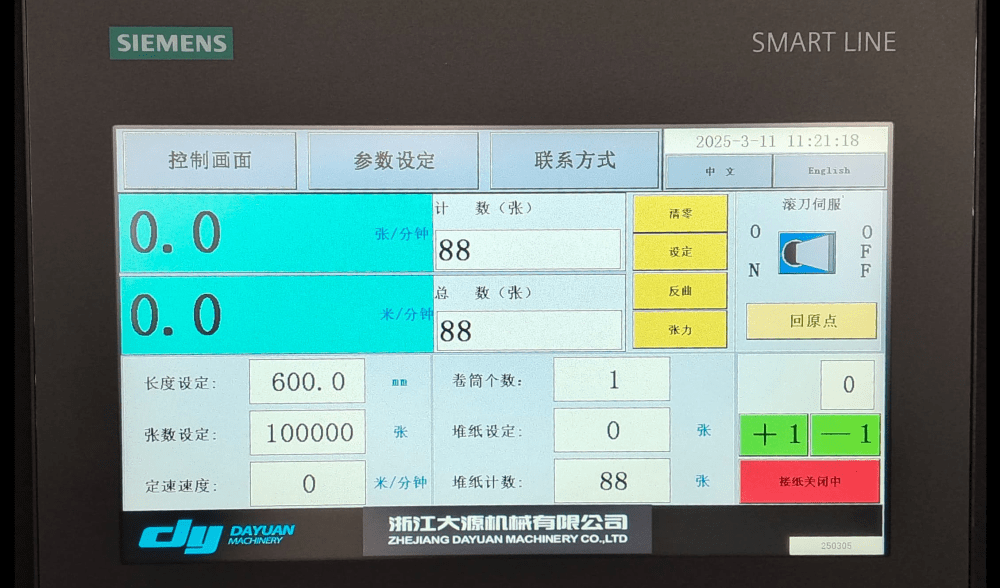

Full-set siemens operating system |
Technical Parameters
|
Model |
SMC-1100ZH SMC-1500ZH SMC-1700ZH SMC-1900ZH |
Paper Cutting Method |
Double rotary sheeter |
Thickness of Cutting Paper |
80-1000gsm |
Cutting Length Range |
450-1650mm |
The Format of Slitting |
2 sheet(Optional) |
Cutting Precision |
Cutting length≤1000mm:±0.1mm Cutting length1000mm:±0.1% |
Max. Cutting Line Speed |
330m/min(SMC-1100/1500/1700) 300m/min(SMC-1900) |
Max. Cutting Speed |
540cuts/min(SMC-1100ZH/1500ZH/1700ZH) 380cuts/min(SMC-1900) |
Max. Scroll Diamete |
1800mm |
Max. Paper Cutting Width |
1100(45”)mm 1500(59” )mm 1700(67” )mm 1900(75”)mm |
Max. Paper Pile Height |
1600mm |
Air Compressor Requirement |
0.8MPa |
Power Consumption |
380V/220V×50HZ |
Machine Weight |
25000/27000/30000/32000kgs |
Full-load Power |
81/94/94/112kw |
Specifications
|
SMC-1100ZH SMC-1500ZH SMC-1700ZH |
SMC-1900ZH | ||||
| Cutting Length |
Line Speed (m/min) |
Cutting Speed (cuts/min) |
Cutting Length |
Line Speed (m/min) |
Cutting Speed (cuts/min) |
| 450 | 195 | 435 | 450 | 100 | 210 |
| 500 | 240 | 480 | 500 | 110 | 220 |
| 600 | 325 | 540 | 600 | 155 | 260 |
| 700 | 330 | 475 | 700 | 230 | 320 |
| 800 | 330 | 410 | 800 | 300 | 380 |
| 900 | 325 | 365 | 900 | 300 | 345 |
| 1000 | 310 | 310 | 1000 | 300 | 300 |
| 1100 | 300 | 275 | 1100 | 290 | 265 |
| 1200 | 300 | 250 | 1200 | 280 | 235 |
| 1300 | 305 | 235 | 1300 | 260 | 210 |
| 1400 | 315 | 235 | 1400 | 260 | 190 |
| 1500 | 330 | 220 | 1500 | 260 | 175 |
| 1600 | 335 | 210 | 1600 | 250 | 160 |
| 1650 | 335 | 210 | 1650 | 250 | 155 |
