SMC-1100H/1500H/1700H/1900H
Servo Precision Double Helix High Speed Sheet Cutter Machine With Auto Pallet Changer
- Developed from Dayuan SMC-series with the automatic pallet changer
- Dayuan core patent technology - double helix knife design
- Cutting accuracy: ±0.1mm; Maximum speed: 540 cuts per minute
- Overview
- Technical Parameters
- Specifications
- Related Products
- FAQ
Product Description
Based on the technology of SMC-series Servo Precision Double Helix High Speed Sheet Cutter Machine, Dayuan automatic roll to sheet cutting machine SMC-H series come equipped with an automatic pallet changer. The non-stop auto pallet changer employs a roll-up type auxiliary collection mechanism to automatically switch trays, significantly reducing the workload and boosting efficiency of paper sheet cutting machine.
 |
 |
 |

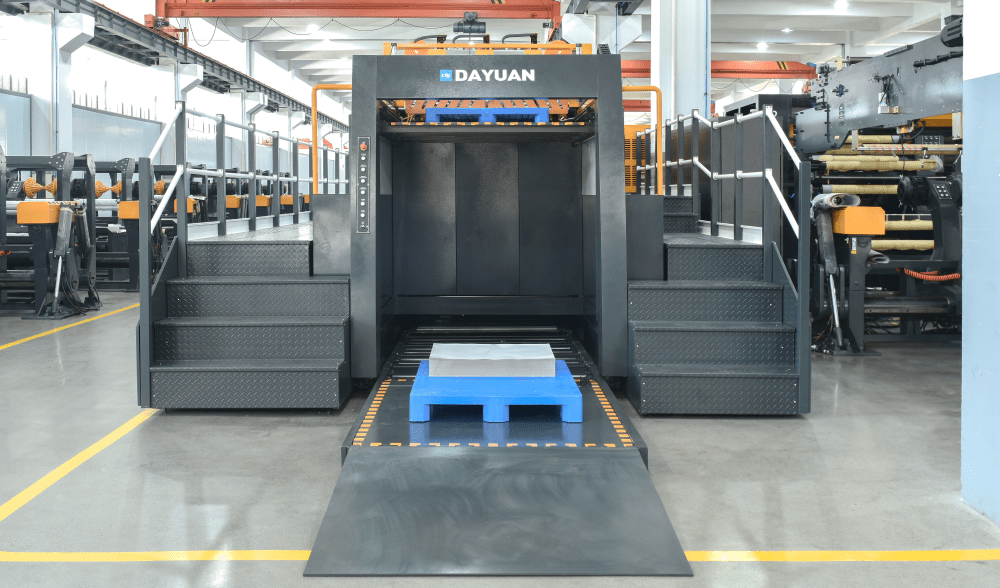

Auto pallet changer |

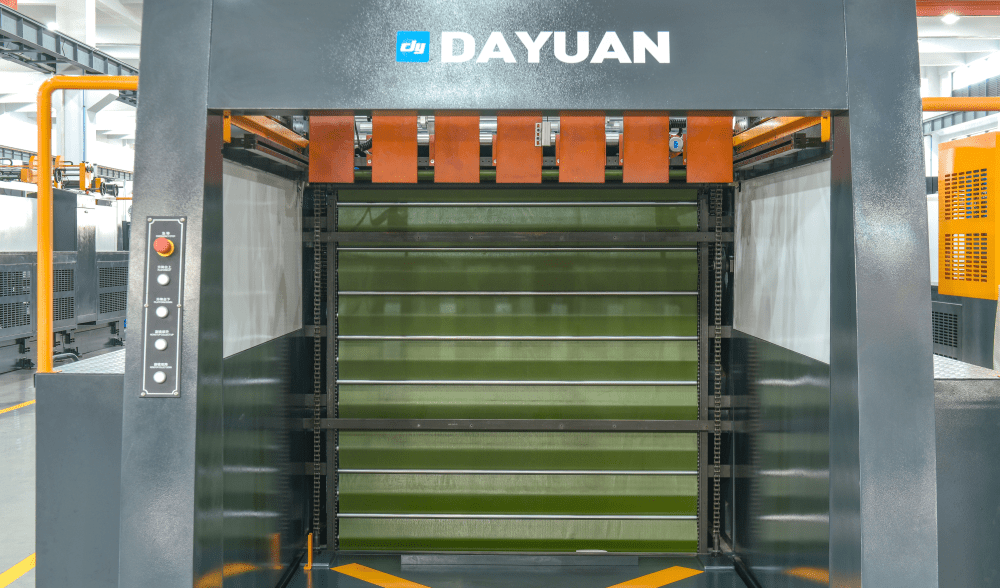

Non-stop rolling curtain paper delivery device |

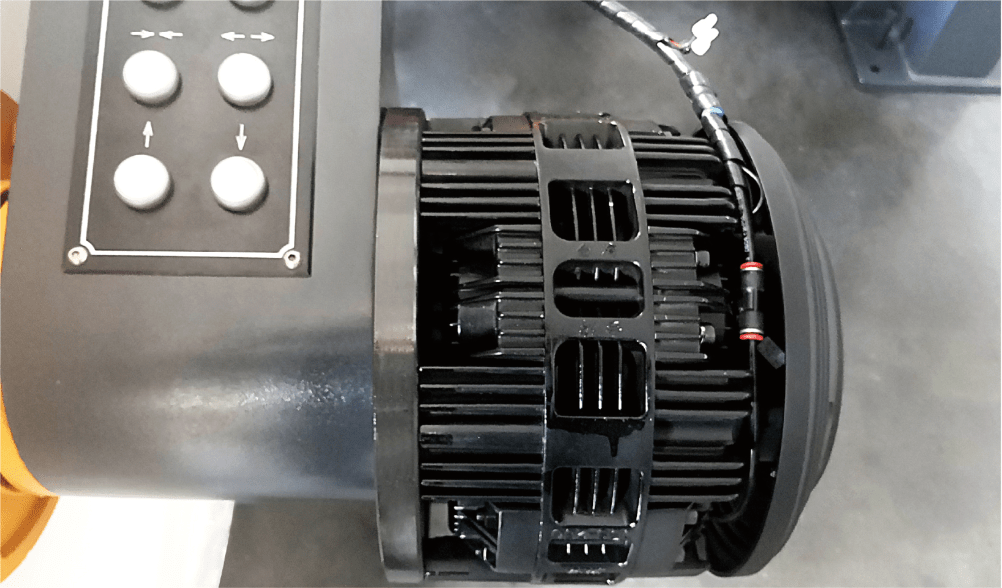

Auto brake |
 |
 |
 |
Auto anti curve |

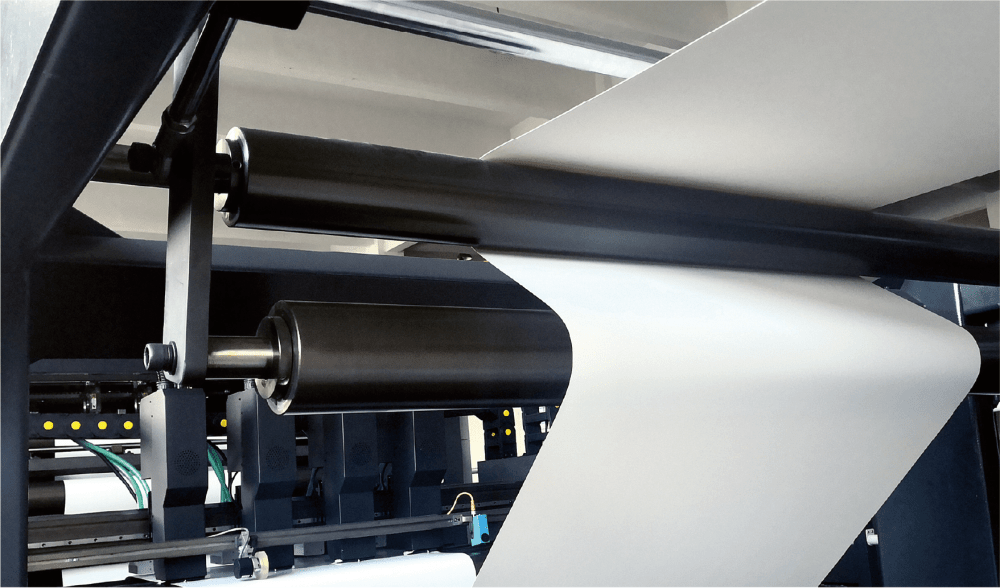

Auto tension control |

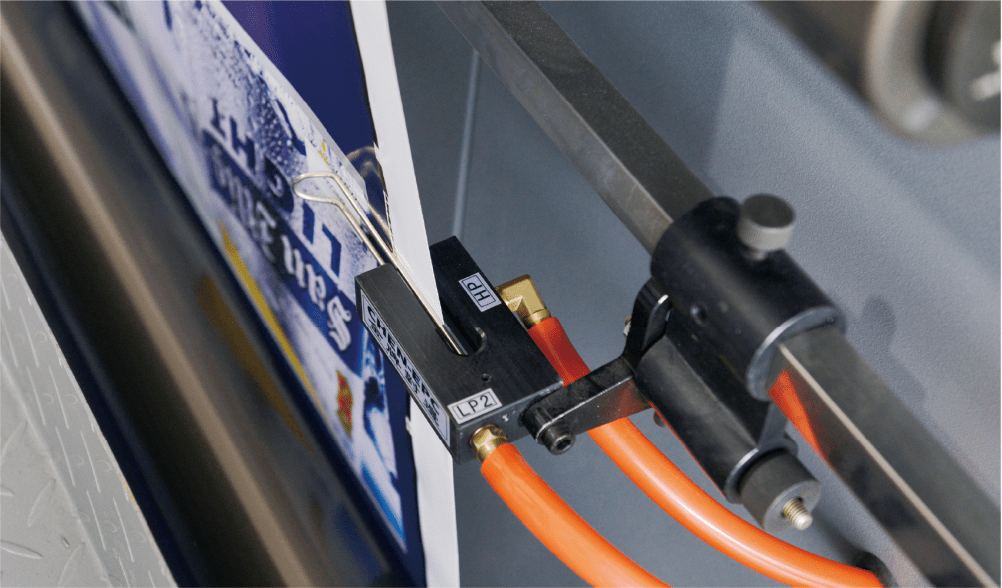

Auto edge position correction |
 |
 |
 |

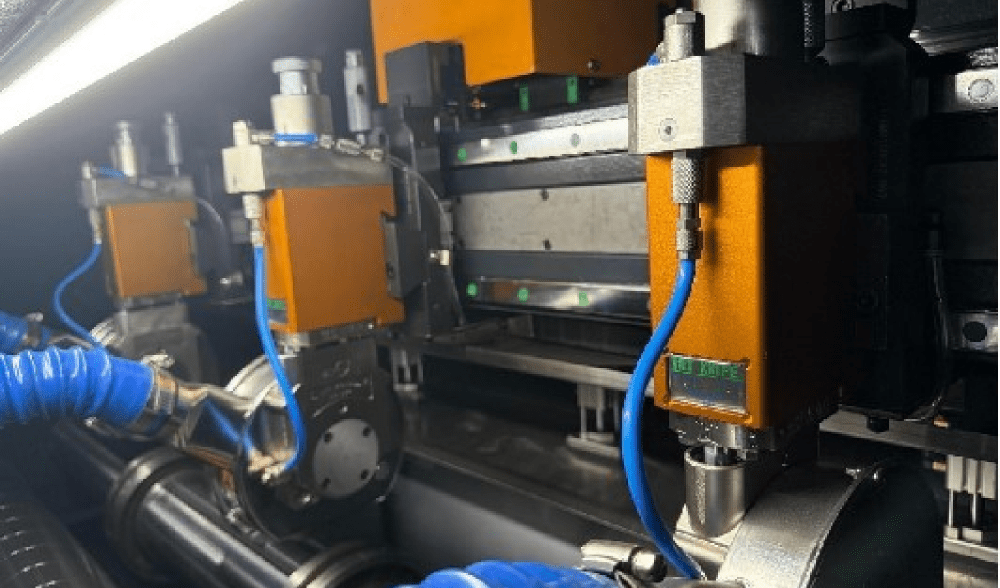

Auto positioning slitting system |

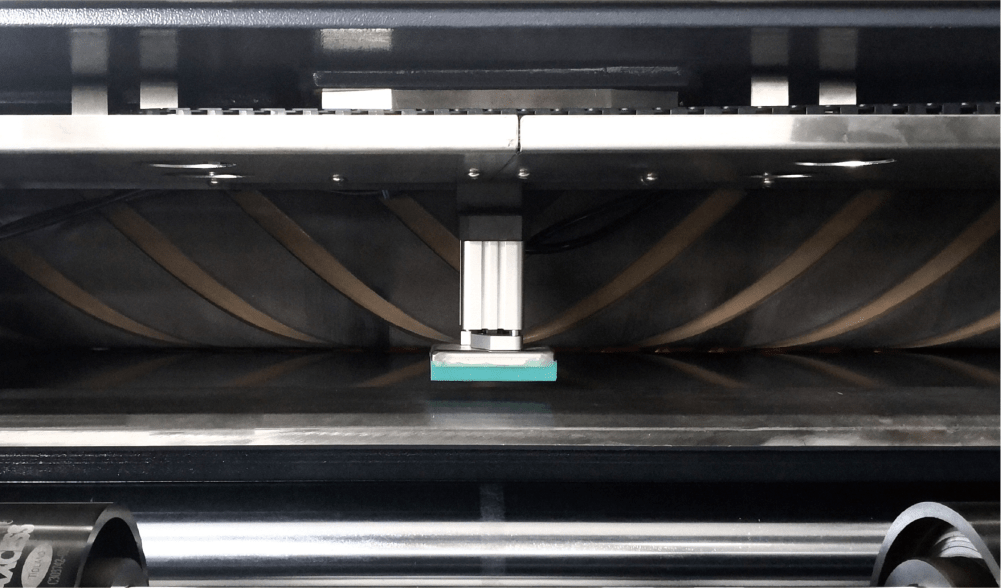

Paper pre-press device |
Embedded double helix knife (invention patent) |
|
|
|

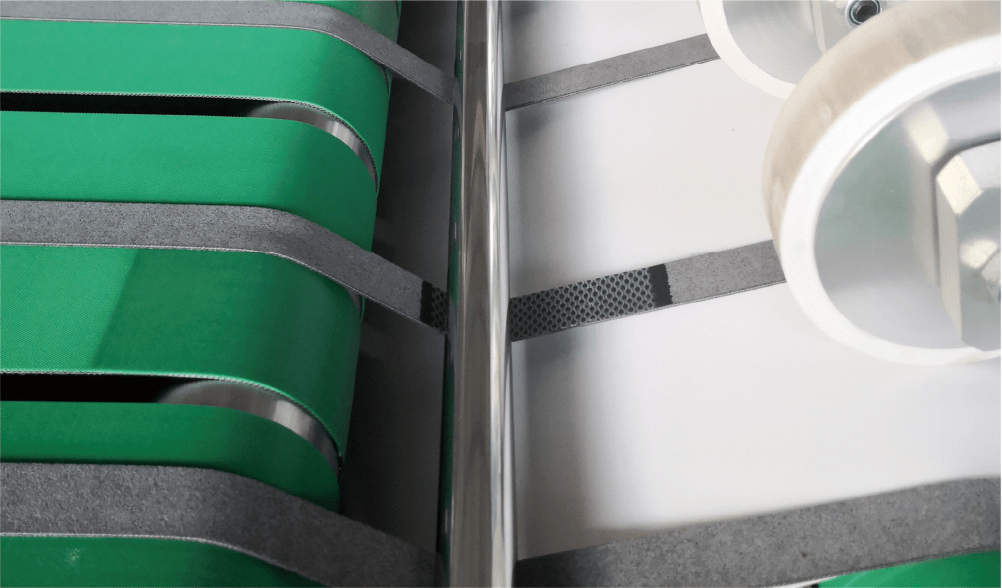

Reject gate |

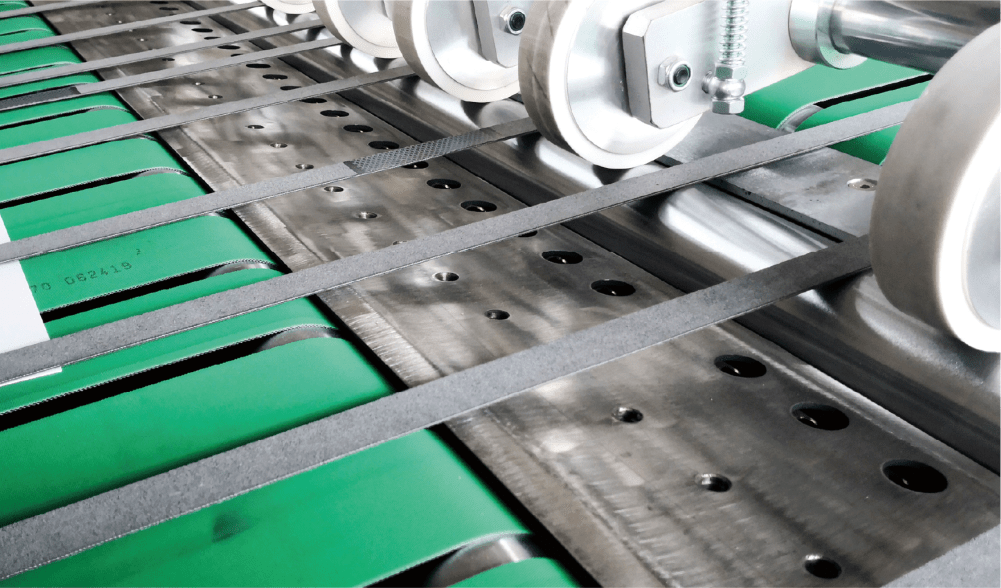

Anti-static device |

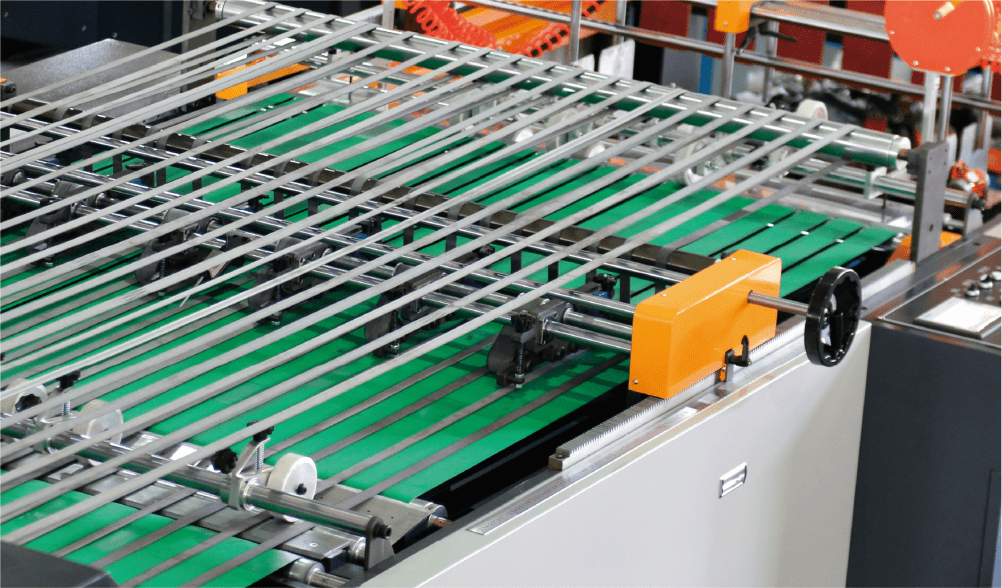

3 times delivery (no impression line) |
|
|
|

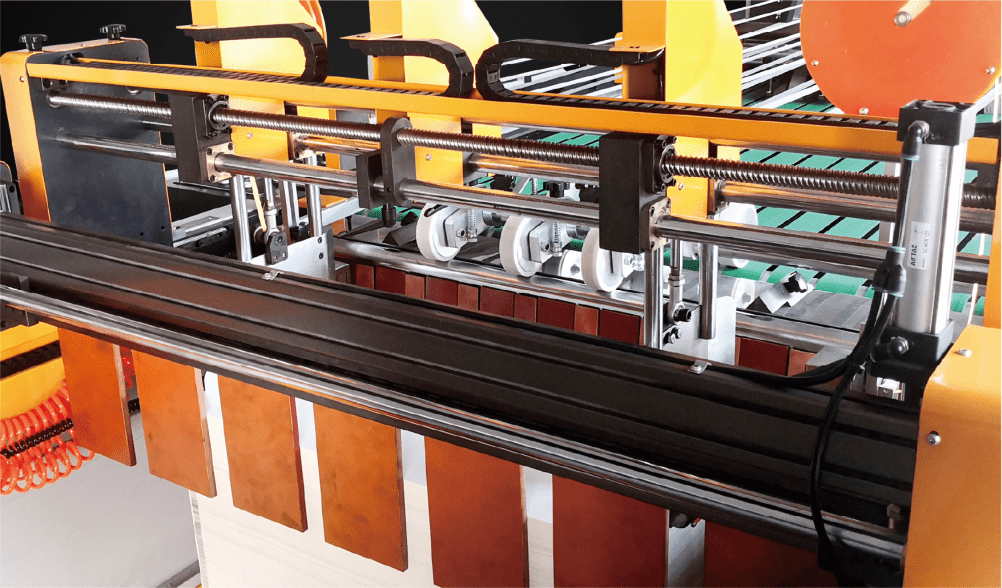

Collecting board pneumatic lifting device |
Full-set siemens operating system |
|
Technical Parameters
Model |
SMC-1100H SMC-1500H SMC-1700H SMC-1900H |
Paper Cutting Method |
Double rotary sheeter |
Thickness of Cutting Paper |
80-1000gsm |
Cutting Length Range |
450-1650mm |
The Format of Slitting |
2 sheet(Optional) |
Cutting Precision |
Cutting length≤1000mm:±0.1mm Cutting length1000mm:±0.1% |
Max. Cutting Line Speed |
330m/min(SMC-1100/1500/1700) 300m/min(SMC-1900) |
Max. Cutting Speed |
540cuts/min(SMC-1100H/1500H/1700H) 380cuts/min(SMC-1900) |
Max. Scroll Diameter |
1800mm |
Max. Paper Cutting Width |
1100(45”)mm 1500(59” )mm 1700(67” )mm 1900(75”)mm |
Max. Paper Pile Height |
1600mm |
Air Compressor Requirement |
0.8MPa |
Power Consumption |
380V/220V×50HZ |
Machine Weight |
22000/24000/27000/29000kgs |
Full-load Power |
78/91/91/109kw |
Specifications
|
SMC-1100H SMC-1500H SMC-1700H |
SMC-1900H | ||||
| Cutting Length |
Line Speed (m/min) |
Cutting Speed (cuts/min) |
Cutting Length |
Line Speed (m/min) |
Cutting Speed (cuts/min) |
| 450 | 195 | 435 | 450 | 100 | 210 |
| 500 | 240 | 480 | 500 | 110 | 220 |
| 600 | 325 | 540 | 600 | 155 | 260 |
| 700 | 330 | 475 | 700 | 230 | 320 |
| 800 | 330 | 410 | 800 | 300 | 380 |
| 900 | 325 | 365 | 900 | 300 | 345 |
| 1000 | 310 | 310 | 1000 | 300 | 300 |
| 1100 | 300 | 275 | 1100 | 290 | 265 |
| 1200 | 300 | 250 | 1200 | 280 | 235 |
| 1300 | 305 | 235 | 1300 | 260 | 210 |
| 1400 | 315 | 235 | 1400 | 260 | 190 |
| 1500 | 330 | 220 | 1500 | 260 | 175 |
| 1600 | 335 | 210 | 1600 | 250 | 160 |
| 1650 | 335 | 210 | 1650 | 250 | 155 |
