MHK-820CE/1050CE/1180CE/1350ACE/1500ACE
Automatic Die Cutting Machine With Stripping

  • Maximum speed: 7,500 sheets/hour; Maximum pressure: 600 tons
  • Covering all sheet sizes ranging from 820×600mm to 1500×1110mm

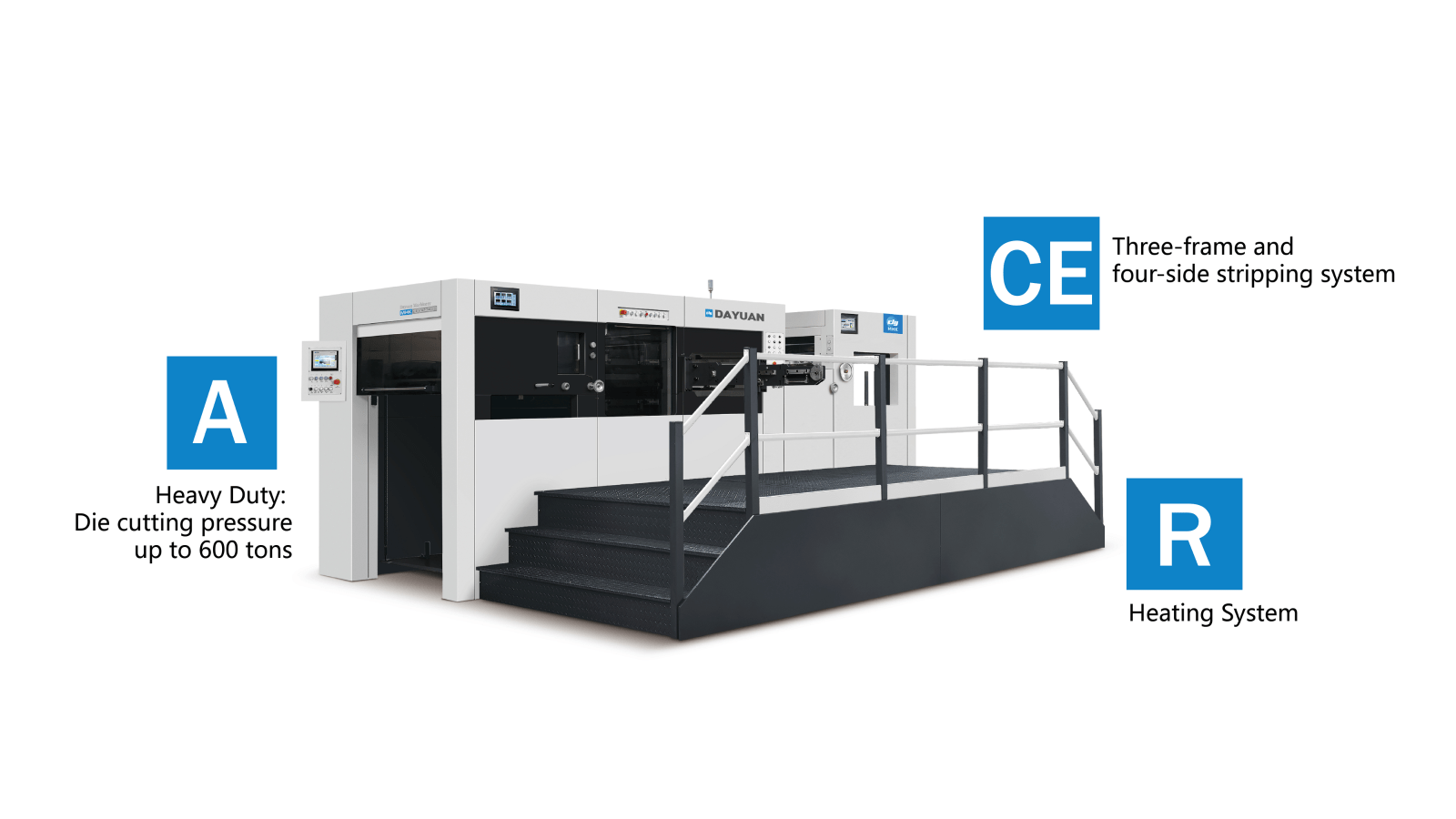

  • Advanced 3-frame 4-side waste stripping technology
  • Overview
  • Technical Parameters
  • Related Products




Product Description

Precision, durability and stability are crucial in automatic flatbed die cutting machine. Dayuan MHK-series Automatic Die Cutting Machine With Stripping has multiple sheet size options ranging from 820×600mm to 1500×1110mm, maintaining precision even at maximum operating speeds to significantly boost your production efficiency while reducing operating costs. We offer customizable configurations that allow flexible functional adjustments to meet your specific production needs, enabling rapid productivity gains with our automatic die cutter machine.



Outstanding Productivity:

Maximum speed: 7,500 sheets/hour
Maximum pressure: 600 tons
50% faster plate-changing significantly boosts productivity and extends uptime
Automatic non-stop roll-up curtain type delivery device.



Superior Quality:

Servo controlled gripper bar positioning device(Invention Patent)
Heavy duty/heating system available(optional).
3-frame 4-side waste stripping technology that the upper and lower frames operate while the middle frame remains stationary eliminates burrs and loose sheets for flawless production.
Equipped with an automatic oil supply system and precision temperature-controlled lubrication (cooling) system, it maintains optimal oil temperature for consistent production.



Excellent Cost Efficiency:
Intuitive HMI (human-machine interface) for user-friendly, error-free operation.
Complete spare parts supply chain ensures worry-free after-sales support.



1飞达(四吸六送).jpg.png 2输纸台.jpg.png !3前规 侧规.jpg.png

Feeder(4 suction and 6 delivery)

Paper conveying unit

Front gauge & side gauge

4同步带传动间歇机构.jpg.png MHK-820CE_1050CE_1180CE_1350ACE_1500ACE+Micro-adjustable frame with quick locking device.jpg.png 6模切钢板微调装置.jpg.png

Timing belt drive, Intermittent mechanism

Plate frame

Micro-adjustable die cutting plate

7牙排后定位伺服控制系统.jpg.png 8微调蜂窝板.jpg.png 9清废部.jpg.png

Servo controlled gripper bar positioning device

Honeycomb plate

Stripping section

!10叼口清废装置.jpg.png 11收纸部.jpg.png 12电气部.jpg.png

Gripper margin stripping device

Non-stop roll-up curtain type paper delivery device

Electrical unit




Germany vacuum pump

Auto lubrication system

Main unit cooling/lubrication mechanism

Technical Parameters

Model

MHK-820CE

MHK-1050CE

MHK-1050ACE

MHK-1050ACER

MHK-1180CE

MHK-1180ACE

MHK-1180ACER

MHK-1350ACE

MHK-1350ACER

MHK-1500ACE

MHK-1500ACER

Maximum Sheet Size

820×600mm

1050×750mm

1180×1050mm

1350×1100mm

1500×1100mm

Minimum Sheet Size

310×260mm

400×360mm

400×360mm

470×450mm

470×450mm

Maximum Cutting Size

800×580mm

1040×720mm

1150×1000mm

1330×1080mm

1480×1080mm

Maximum Embossing Area

/

-- / -- / 1040×720mm

-- / -- / 1150×1000mm

-- / 1330×1080mm

-- / 1480×1080mm

Minimum Gripper Margin

9-17mm

9-17mm

9-17mm

9-17mm

9-17mm

Minimum Width of Cuts

10-18mm

10-18mm

10-18mm

10-18mm

10-18mm

Cutting Rule Height

23.8mm

23.8mm

23.8mm

23.8mm

23.8mm

Inner Chase Size

910×610mm

1140×755mm

1230×1028mm

1360×1130mm

1510×1130mm

Stock Range

Cardboard: 80-2000g/m², 0.1-2mm

Corrugated board: ≤4mm

Cardboard: 80-2000g/m², 0.1-2mm

Corrugated board: ≤4mm

Cardboard: 100-2000g/m², 0.1-2mm

Corrugated board: ≤4mm

Cardboard: 200-2000g/m², 0.2-2mm

Corrugated board: ≤4mm

Cardboard: 250-2000g/m², 0.25-2mm

Corrugated board: ≤4mm

Die Cutting Accuracy

≤±0.1mm

≤±0.075mm

≤±0.1mm

≤±0.1mm

≤±0.1mm

Embossing Accuracy

/

-- / -- / ≤±0.075mm

-- / -- / ≤±0.1mm

-- / ≤±0.1mm

-- / ≤±0.1mm

Max.Cutting Force

300T

300T / 600T / 600T

400T / 600T / 600T

600T / 600T

600T / 600T

Max.Working Speed

7500s/h

7500s/h

7000s/h

5500s/h

5500s/h

Maximum Feeder Pile Height

1500mm

1600mm

1600mm

1600mm

1600mm

Maximum Delivery Pile Height

1300mm

1400mm

1400mm

1400mm

1400mm

Electric-heated System

/

-- / -- / 20 Heating zones,40-180℃ Adjustable

-- / -- / 20 Heating zones,40-180℃ Adjustable

-- / 20 Heating zones,40-180℃ Adjustable

-- / 20 Heating zones,40-180℃ Adjustable

Main Motor Power

11KW

11KW / 15KW / 15KW

11KW / 15KW / 15KW

22KW / 22KW

22KW / 22KW

Full Load Wattage

17KW

17KW / 21KW / 35KW

19KW / 23KW / 35KW

31KW / 49KW

31KW / 49KW

Air Requirement

0.6-0.7MPa,≥0.37m³/min

0.6-0.7MPa,≥0.37m³/min

0.6-0.7MPa,≥0.37m³/min

0.6-0.7MPa,≥0.75m³/min

0.6-0.7MPa,≥0.75m³/min

Net Weight of Machine

13T

17T / 19T / 19T

20T / 22T / 23T

32T

34T

Machine Dimensions(L×W×H)

6485×3676×2185mm

7100×4258×2334mm(CE)

7518×4610×2504mm

10213×5063×2560mm

10213×5263×2560mm

7100×4317×2334mm(ACE)

7100×4317×2334mm(ACER)
