MHK-1180FC/1300FC/1350FC/1500FC/1650FC
Automatic Die Cutting Machine With Stripping
- Specially designed for larget-formart corrugated paper market
- Covering all sizes ranging from 1290×940mm to 1650×1200mm
- Maximum speed: 6,200 sheets/hour; Maximum pressure: 450 tons
- Overview
- Technical Parameters
- Related Products
Product Description
Developed specifically for the corrugated market by Dayuan, this die-cutting machine offers multiple size configurations with maximum sheet size ranging from 1290×940mm to 1650×1200mm, making it ideal for high-volume production of multi-up packaging including beer cartons, appliance boxes, eBay/Amazon shipping containers, premium gift boxes, and milk crates. Featuring end-to-end automation from the feeding to delivery sections, this advanced system maximizes both output and cost-efficiency, establishing itself as the premier solution for your large-format die-cutting requirements.
Highly Customizable Solutions:
Three avaiable paper feeding options: lead edge feeder, down feeder and tiptronic feeder
Three avaiable delivery options: high stack collecting section, paper counting & collecting section and linkage production line
Maximum speed: 6,200 sheets/hour; Maximum pressure: 450 tons.
Premium Quality Output:
Incorporating multiple advanced technologies, our system achieves exceptional precision when processing corrugated board.
The fully automated production process significantly reduces operator training and preparation time, enabling immediate high-quality output.
 |
 |
|
Lead edge feeder |
Down feeder |
Feeder(tiptronic) |
 |
 |
 |
Conveying unit |
Front gauge & side gauge |
Timing belt device |
 |
 |
 |
Die-cutting section |

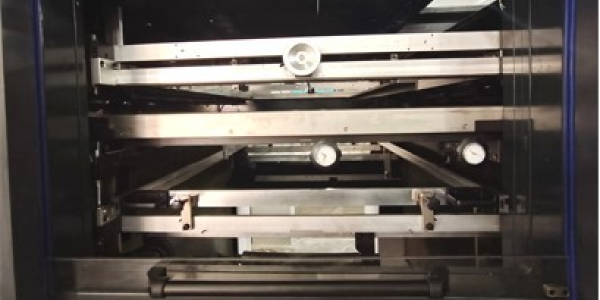

Three layer stripping section |
Gripper waste removal device |
 |
 |
 |
Auto non-stop collecting device（standard） |

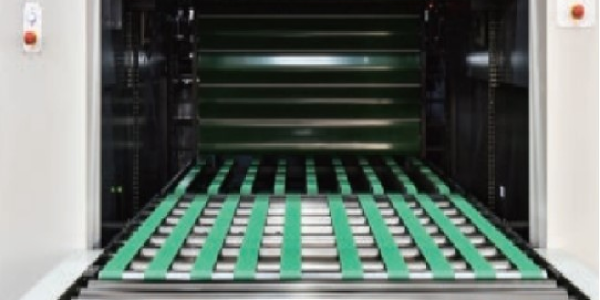

Paper counting & collecting section（opt.） |
Electrical unit |
|
|
|
Germany vacuum pump |
Concentrate lubrication |
Technical Parameters
|
Model |
MHK-1180FC MHK-1180EFC |
MHK-1300EC MHK-1300FC MHK-1300EFC |
MHK-1350EC MHK-1350FC MHK-1350EFC |
MHK-1500EC MHK-1500FC MHK-1500EFC |
MHK-1650EC MHK-1650FC MHK-1650EFC |
|
Maximum Sheet Size |
1180×1050mm |
1290×940mm |
1350×1100mm |
1500×1100mm |
1650×1200mm |
|
Minimum Sheet Size |
400×360mm |
470×450mm |
470×450mm |
470×450mm |
550×500mm |
|
Maximum Cutting Size |
1150×1000mm |
1280×920mm |
1330×1080mm |
1480×1080mm |
1620×1180mm |
|
Minimum Gripper Margin |
9-17mm |
9-17mm |
9-17mm |
9-17mm |
9-17mm |
|
Minimum Width of Cuts |
10-18mm |
10-18mm |
10-18mm |
10-18mm |
10-18mm |
|
Cutting Rule Height |
23.8mm |
23.8mm |
23.8mm |
23.8mm |
23.8mm |
|
Inner Chase Size |
1230×1028mm |
1310×948mm |
1360×1118mm |
1510×1118mm |
1682×1219mm |
|
Stock Range |
Corrugated board: ≤7mm, E, B, C, A and AB corrugated paper |
Cardboard：≥200g/m² Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper(EC) |
Cardboard：≥200g/m² Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper(EC) |
Cardboard：≥250g/m² Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper(EC) |
Cardboard：≥350g/m² Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper(EC) |
|
Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper(FC) |
Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper(FC) |
Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper(FC) |
Corrugated board: ≤8.5mm, F,E, B, C, A and AB corrugated paper(FC) |
||
|
Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper(EFC) |
Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper(EFC) |
Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper(EFC) |
Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper(EFC) |
||
|
Die Cutting Accuracy |
≤±0.1mm |
≤±0.15mm |
≤±0.15mm |
≤±0.15mm |
≤±0.2mm |
|
Max.Cutting Force |
400T |
400T |
400T |
400T |
400T |
|
Max.Working Speed |
7000s/h |
6000s/h |
6000s/h |
6000s/h |
5000s/h |
|
Maximum Feeder Pile Height |
/ |
1800mm / -- / -- |
1800mm / -- / -- |
1800mm / -- / -- |
1800mm / -- / -- |
|
Maximum Delivery Pile Height |
1400mm |
1600mm |
1600mm |
1600mm |
1600mm |
|
Main Motor Power |
11KW |
11KW |
15KW |
15KW |
18.5KW |
|
Full Load Wattage |
23KW/22KW |
19KW / 23KW / 21KW |
24KW / 28KW / 25KW |
24KW / 28KW / 26KW |
28KW / 32KW / 30KW |
|
Air Requirement |
0.6-0.7MPa，≥0.37m³/min |
0.6-0.7MPa，≥0.75m³/min |
0.6-0.7MPa，≥0.75m³/min |
0.6-0.7MPa，≥0.75m³/min |
0.6-0.7MPa，≥0.75m³/min |
|
Net Weight of Machine |
21T / 22T |
21T / 22T / 23T |
22T / 23T / 24T |
23T / 24T / 25T |
25T / 26T / 27T |
|
Machine Dimensions（High-stacked Roller Shutter Cardboard Collection）(L×W×H) |
7500×5240×2450mm |
9551×4648×2767mm(EC) |
9958×4848×2803mm(EC) |
9958x4848x2803mm(EC) |
10690x5296x2932mm(EC) |
|
9180×5240×2767mm(FC) |
9680x5240x2803mm(FC) |
9680x5240x2803mm(FC) |
9939x5580x2932mm(FC) |
||
|
9160×5240×2767mm(EFC) |
9680×5240×2803mm(EFC) |
9680×5240×2803mm(EFC) |
9869×5580×2932mm(EFC) |
||
|
Machine Dimensions（Counting Stacked Cardboard Collection）(L×W×H) |
/ |
11305×4648×2767mm(EC) |
12055x5240x2803mm(EC) |
12055x5240x2803mm(EC) |
12200x5580x2932mm(EC) |
|
11110×5240×2767mm(FC) |
11644x5240x2803mm(FC) |
11664x5240x2803mm(FC) |
11799x5580x2932mm(FC) |
||
|
10905×5240×2767mm(EFC) |
11655×5240×2803mm(EFC) |
11655×5240×2803mm(EFC) |
11700×5580×2932mm(EFC) |
