MHC-1060AT/1350AT/1500AT
Automatic Hot Foil Stamping & Die Cutting Machine(Heavy Duty)
- Designed for hot stamping & deep embossing, covering all range from 1060mm to 1500mm
- Maximum speed: 7500 sheets/h
- Maximum working pressure: 600T
- Overview
- Technical Parameters
- Related Products
Product Description
This model is available in multiple sizes to meet diverse production requirements, with a maximum foil stamping area of 1480×1080mm. As a cost-effective hto stamping and die cutter machine that delivers fast Return on Investment, it features highly automated operation with simple and efficient controls that require minimal operator expertise, effectively reducing your labor costs.
Expanding Customer Markets:
• This machine performs both foil stamping and die-cutting, enabling product diversification. Its capability to stamp various materials significantly enhances your factory's productivity.
Reliable Performance:
• With a maximum speed of 7,500 sheets/hour and 600-ton pressure capacity, it meets high-volume demands. The integrated self-developed foil stamping control system and foil feeding mechanism ensure premium stamping quality.
Stable Operation:
• Equipped with an automatic oil supply system and precision temperature-controlled lubrication (cooling) system, it maintains optimal oil temperature for consistent, dependable production.
 |
 |
 |

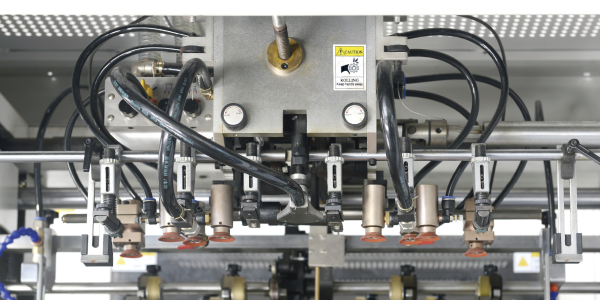

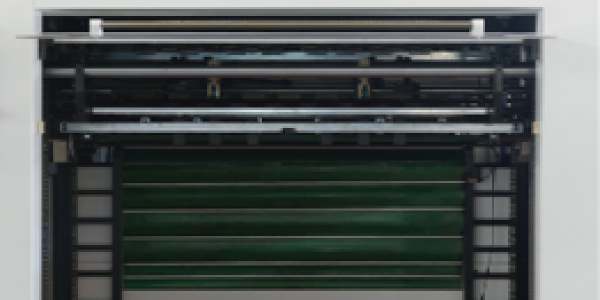

| Feeder |

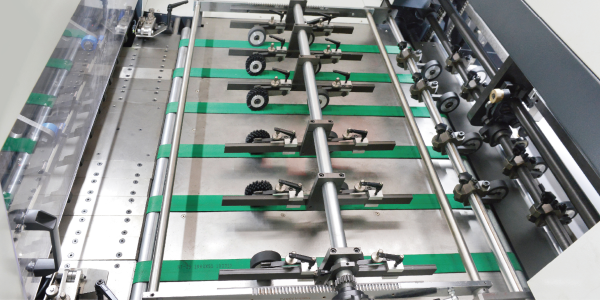

Conveying unit |

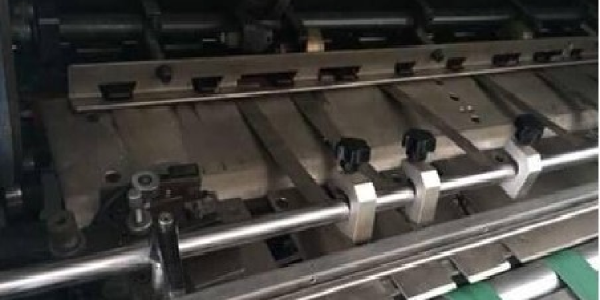

Front gauge & side gauge |
 |
 |
 |

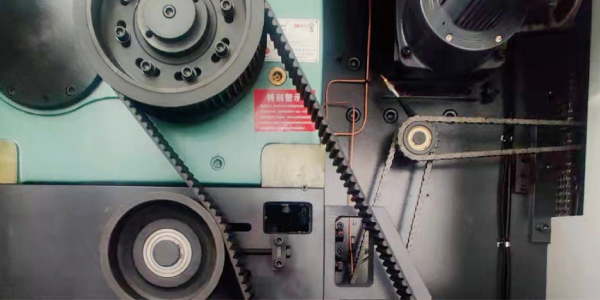

| Timing belt driven device |

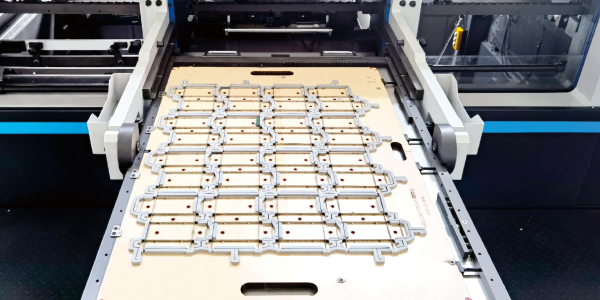

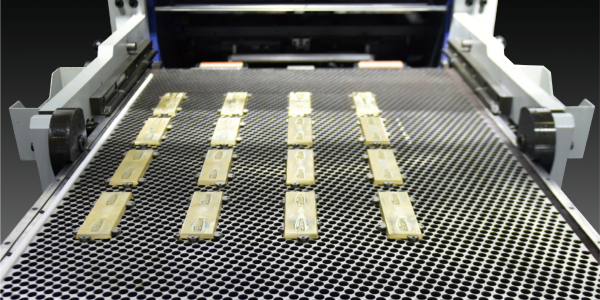

Plate frame |
Hot stamping unit |
 |
 |
 |
| Auto non-stop collecting device |

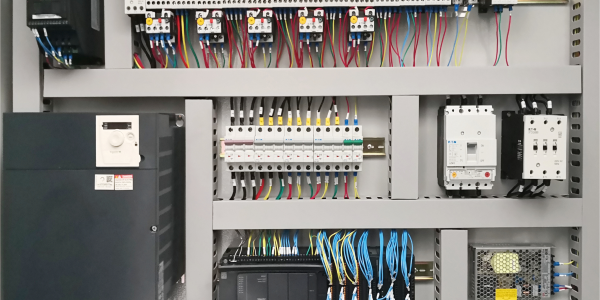

Electrical unit |

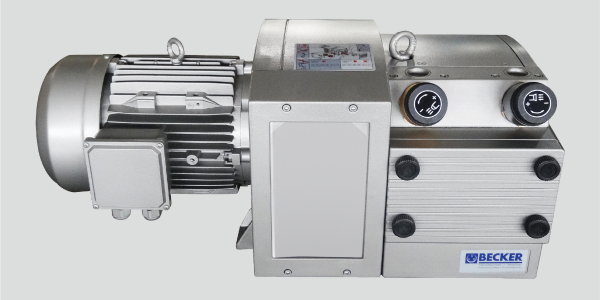

Germany vacuum pump |
 |
 |
|

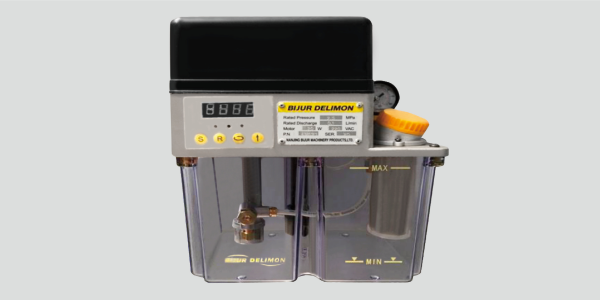

| Concentrate lubrication |

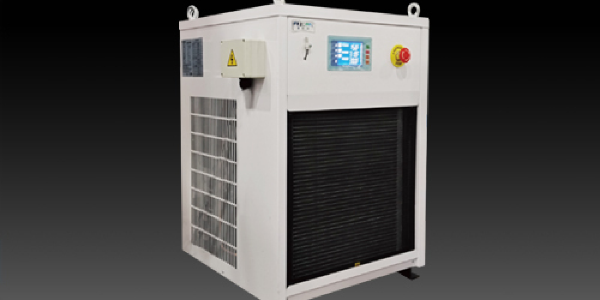

Cooling and lubrication mechanism of the main engine |
Technical Parameters
|
Model |
MHC-1060AT |
MHC-1350AT |
MHC-1500AT |
|
Maximum Sheet Size |
1080×780mm |
1350×1100mm |
1500×1100mm |
|
Minimum Sheet Size |
400×350mm |
470×450mm |
470×450mm |
|
Maximum Cutting Size |
1060×760mm |
1330×1080mm |
1480×1080mm |
|
Maximum Stamping Size |
1060×760mm |
1330×1080mm |
1480×1080mm |
|
Minimum Gripper Margin |
9-17mm |
9-17mm |
9-17mm |
|
Cutting Rule Height |
23.8mm |
23.8mm |
23.8mm |
|
Inner Chase Size |
1120×786mm |
1360×1118mm |
1510×1118mm |
|
Stock Range |
Cardboard: 80-2000g/m²,0.1-2mm |
Cardboard: 200-2000g/m²,0.2-2mm |
Cardboard: 250-2000g/m²,0.25-2mm |
|
Die Cutting Accuracy |
≤±0.1mm |
≤±0.15mm |
≤±0.15mm |
|
stamping accuracy |
≤±0.1mm |
≤±0.15mm |
≤±0.15mm |
|
Heating Accuracy |
≤±0.1mm |
≤±0.2mm |
≤±0.2mm |
|
Max.Cutting Force |
600T |
500T |
500T |
|
Max.Working Speed |
7500s/h |
5500s/h |
5500s/h |
|
Maximum Feeder Pile Height |
1600mm |
1600mm |
1600mm |
|
Maximum Delivery Pile Height |
1400mm |
1400mm |
1400mm |
|
Max.Gold Doil Diameter |
φ250mm Longitudinal，φ200mm Transeversal |
φ250mm Longitudinal，φ200mm Transeversal |
φ250mm Longitudinal，φ200mm Transeversal |
|
Electric-heated System |
20 Heating zones，40-180℃ Adjustable |
20 Heating zones，40-180℃ Adjustable |
20 Heating zones，40-180℃ Adjustable |
|
Foil Width |
20-1020mm |
20-1320mm |
20-1470mm |
|
Main Motor Power |
15KW |
22KW |
22KW |
|
Full Load Wattage |
52KW |
67KW |
67KW |
|
Air Requirement |
0.6-0.7MPa，≥0.37m³/min |
0.6-0.7MPa，≥0.75m³/min |
0.6-0.7MPa，≥0.75m³/min |
|
Net Weight of Machine |
20.5T |
25T |
26T |
|
Machine Dimensions(L×W×H) |
7300×4306×2620mm |
9956×4506×2752mm |
9956×4706×2752mm |
