C-750B
Semi-automatic Row Stripping Machine
- Compact Design, One-Person Operation
- Semi-Automatic Row Stripping Lowers Labor Needs
- Ideal for Small-Size Cartons, Hang Tags, Cards & More
- Overview
- Technical Parameters
- Related Products
- FAQ
Product Description
As an advanced solution for post-die-cutting processes, this intelligent waste removal machine delivers exceptional performance for hang tags, labels, pharmaceutical packaging, cosmetic packaging and more. Featuring intelligent automation, it effectively lowers labor costs, elevates product quality and maximizes overall production efficiency.
•The C‑750B semi‑automatic row stripping machine is designed for stripping cardboard products including clothing tags, cards, small medicine boxes, cigarette boxes, toy boxes, and more.
•It requires no dedicated molds for different product sizes. The upper pressing plates and lower pins can flexibly adapt to various product dimensions and shapes.
•The main movements are driven by servo motors, ball screws and a hydraulic system, ensuring high precision, easy operation, a low failure rate and flexible motion.
•It reduces labor, tooling and mold costs while delivering high efficiency, simple operation and increased production capacity.
•Stripping is carried out row by row, ensuring stable and orderly operation.
Sample
Row by Row Waste Stripping
 |
 |
 |
|

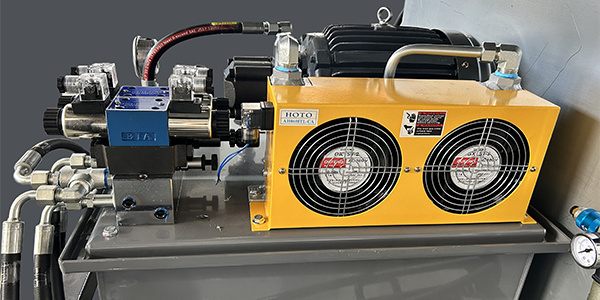

Hydraulic System
|

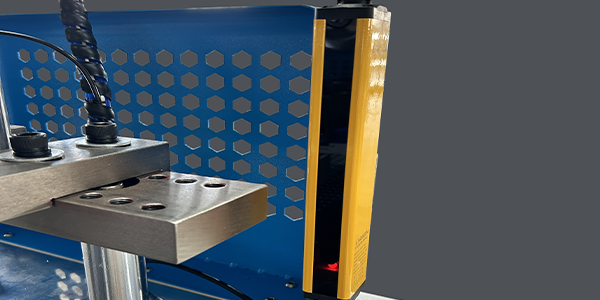

Safety Grating
|

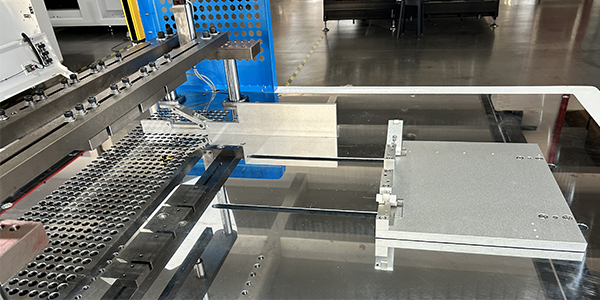

Operation Working Table
|
 |
 |
 |
|

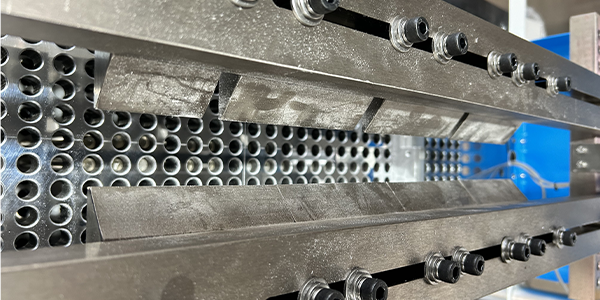

Upper Pressing Plate
|

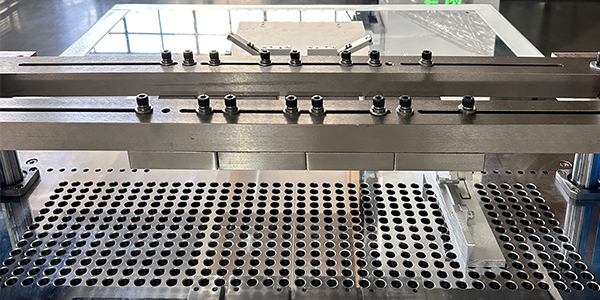

Lower Pins
|

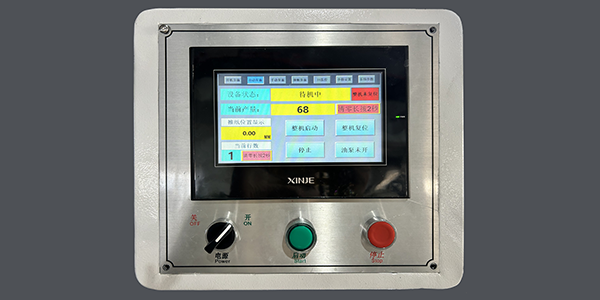

Touch Screen
|
 |
 |
|
|

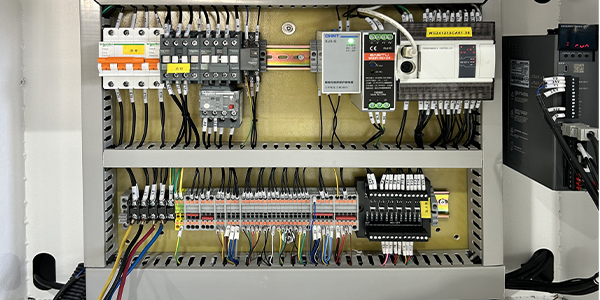

Electrical System
|

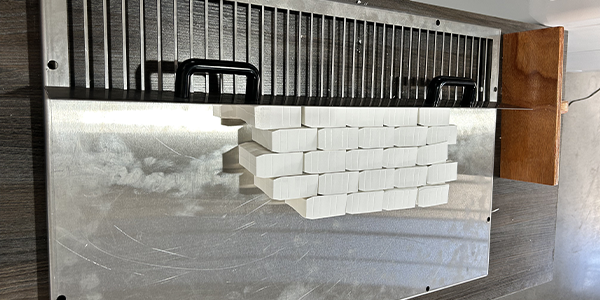

Finished Products Collection Unit
|
Technical Parameters
| Model | C-750B |
| Max. Material Stack Size | 750×720 mm |
| Max. Stack Thickness | 80 mm |
| Min. Stack Thickness | 40 mm |
| Max. Products Size | 740×200 mm |
| Min. Products Size | 40×31 mm |
| Max. Pressure | 40kn |
| Speed | 8 times/min |
| Power Supply | 380V-3 phase-50/60HZ |
| Total Power | 5 kw |
| Average Power | 3.5 kw |
| Working Air Pressure | 0.5-0.6 mpa |
| Air Consumption | 3L/min |
| Overall Dimensions | 1710×1330×1780 mm |
| Weight | 1550 kg |
