BHT-1500FC/1650FC/1900FC/2100FC
Automatic Die Cutting & Creasing Machine With Stripping
- Maximum speed: 6,000 sheets/hour; Maximum pressure: 450 tons
- Stock range: ≤9mm corrugated board;F,E,B,C,A and AB corrugated paper
- Covering all ranges from 1520×1100mm to 2100×1600mm
- Overview
- Technical Parameters
- Related Products
Product Description
Developed specifically for the corrugated market by Dayuan, this die-cutting machine offers multiple size configurations with maximum sheet size ranging from 1520×1100mm to 2100×1600mm, making it ideal for high-volume production of multi-up packaging including beer cartons, appliance boxes, eBay/Amazon shipping containers, premium gift boxes, and milk crates. Featuring end-to-end automation from the feeding to delivery sections, this advanced system maximizes both output and cost-efficiency, establishing itself as the premier solution for your large-format die-cutting requirements.
Highly Customizable Solutions
• Two avaiable paper feeding options: lead edge feeder and down feeder
• Three avaiable paper collecting options: high stack collecting section, paper counting & collecting section and linkage production line
• Maximum speed: 6,200 sheets/hour; Maximum pressure: 450 tons.
Premium Quality Output
• Incorporating multiple advanced technologies, our system achieves exceptional precision when processing corrugated board.
• The fully automated production process significantly reduces operator training and preparation time, enabling immediate high-quality output.
 |
 |
 |

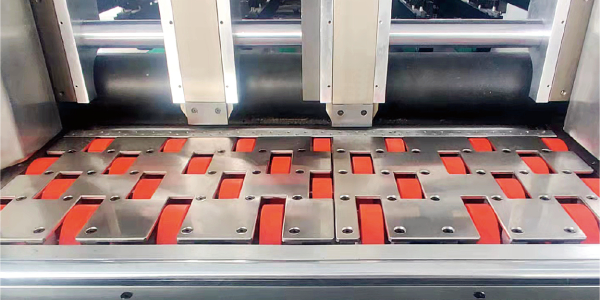

Lead edge feeder |

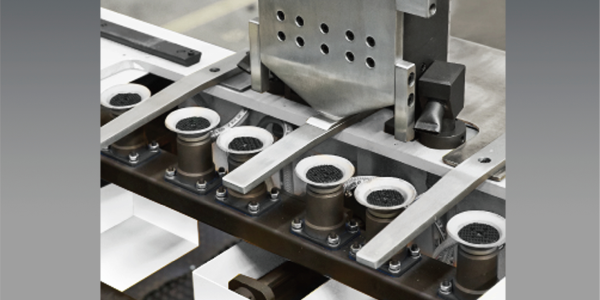

Down feeder |

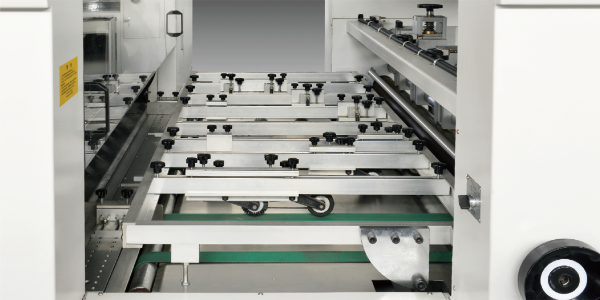

Sheet transmission and alignment section |
 |
 |
 |

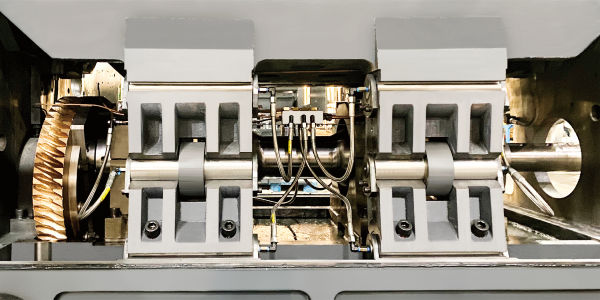

Variable speed worm gear drive device |

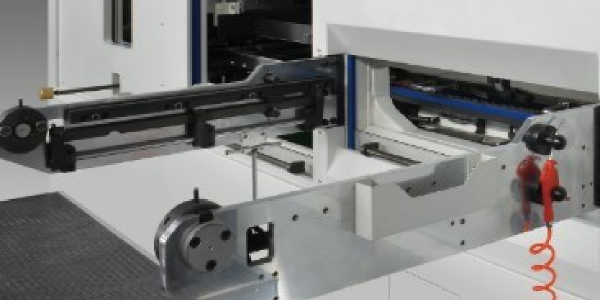

Cutting plate microadjustment device |

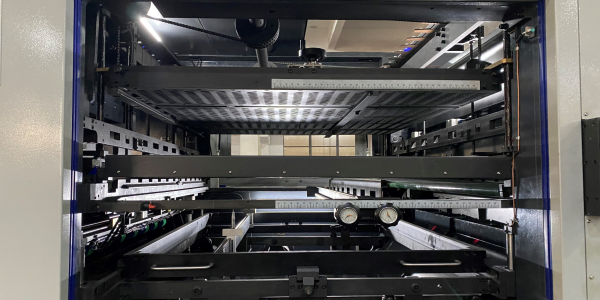

Three layer stripping section |
 |
 |
 |

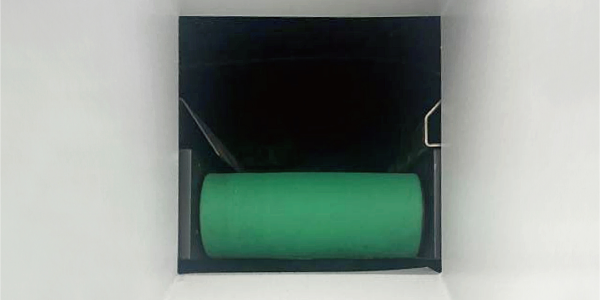

Gripper waste removal device |

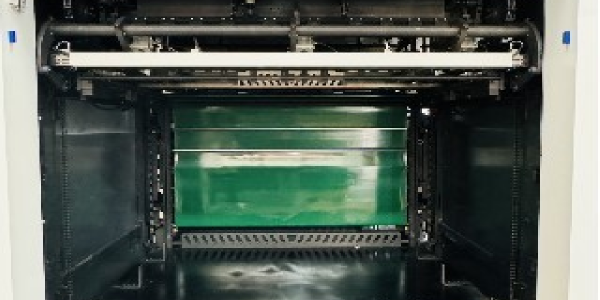

Auto non-stop collecting device（standard） |

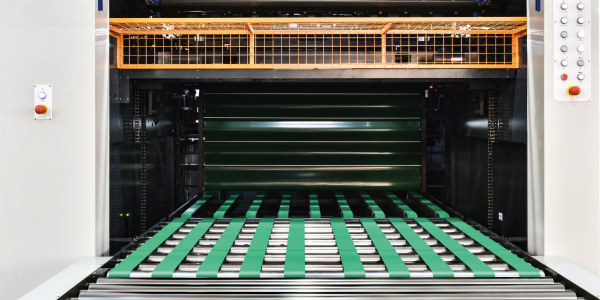

Paper counting & collecting section（opt.） |

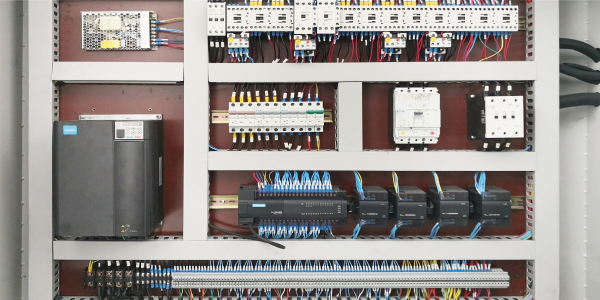

Electrical unit |

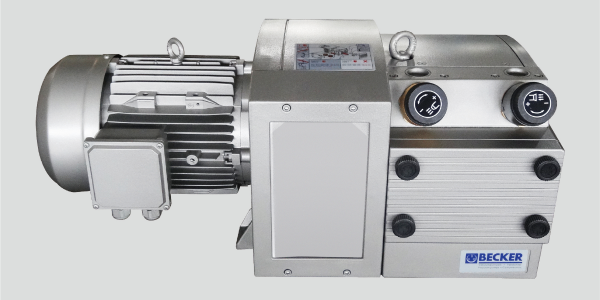

Germany vacuum pump |

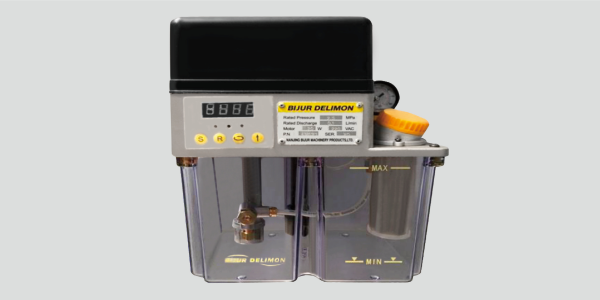

Concentrate lubrication |
Technical Parameters
|
Model |
BHT-1500FC BHT-1500EFC |
BHT-1650FC BHT-1650EFC |
BHT-1900FC BHT-1900EFC |
BHT-2100FC BHT-2100EFC |
|
Maximum Sheet Size |
1520×1100mm |
1650×1200mm |
1900×1400mm |
2100×1600mm |
|
Minimum Sheet Size |
480×480mm |
650×500mm |
650×500mm |
750×650mm |
|
Maximum Cutting Size |
1500×1100mm |
1630×1180mm |
1880×1380mm |
2080×1580mm |
|
Minimum Gripper Margin |
9-17mm |
9-17mm |
9-17mm |
9-17mm |
|
Minimum Width of Cuts |
10-18mm |
10-18mm |
10-18mm |
10-18mm |
|
Cutting Rule Height |
23.8mm |
23.8mm |
23.8mm |
23.8mm |
|
Inner Chase Size |
1600×1145mm |
1670×1230mm |
1920×1430mm |
2120×1630mm |
|
Stock Range |
Corrugated board: ≤9mm,F,E,B,C,A and AB corrugated paper |
Corrugated board: ≤9mm,F,E,B,C,A and AB corrugated paper |
Corrugated board: ≤9mm,F,E,B,C,A and AB corrugated paper |
Corrugated board: ≤9mm,F,E,B,C,A and AB corrugated paper |
|
Die Cutting Accuracy |
≤±0.15mm |
≤±0.2mm |
≤±0.2mm |
≤±0.2mm |
|
Max.Cutting Force |
400T |
400T |
450T |
450T |
|
Max.Working Speed |
6000s/h |
6000s/h |
5000s/h |
4000s/h |
|
Maximum Delivery Pile Height |
1500mm |
1500mm |
1500mm |
1500mm |
|
Main Motor Power |
18.5KW |
18.5KW |
18.5KW |
22KW |
|
Full Load Wattage |
38KW / 36KW |
38KW / 38KW |
40KW / 40KW |
47KW / 47KW |
|
Air Requirement |
0.6-0.7MPa，≥1m³/min |
0.6-0.7MPa，≥1m³/min |
0.6-0.7MPa，≥1m³/min |
0.6-0.7MPa，≥1m³/min |
|
Net Weight of Machine |
31T / 33T |
40T / 41T |
46T / 47T |
51T / 52T |
|
Machine Dimensions（High-stacked Roller Shutter Cardboard Collection）(L×W×H) |
9887×5500×2800mm |
10344×5970×2876mm(FC) |
11853×6560×2972mm(FC) |
14370×7160×2972mm |
|
10187×5970×2876mm(EFC) |
11652×6560×2972mm(EFC) |
|||
|
Machine Dimensions（Counting Stacked Cardboard Collection）(L×W×H) |
11400×5500×2800mm |
12049×7090×2876mm(FC) |
13690×6560×2972mm(FC) |
15870×7160×2972mm |
|
11892×5970×2876mm(EFC) |
13489×6560×2972mm(EFC) |
