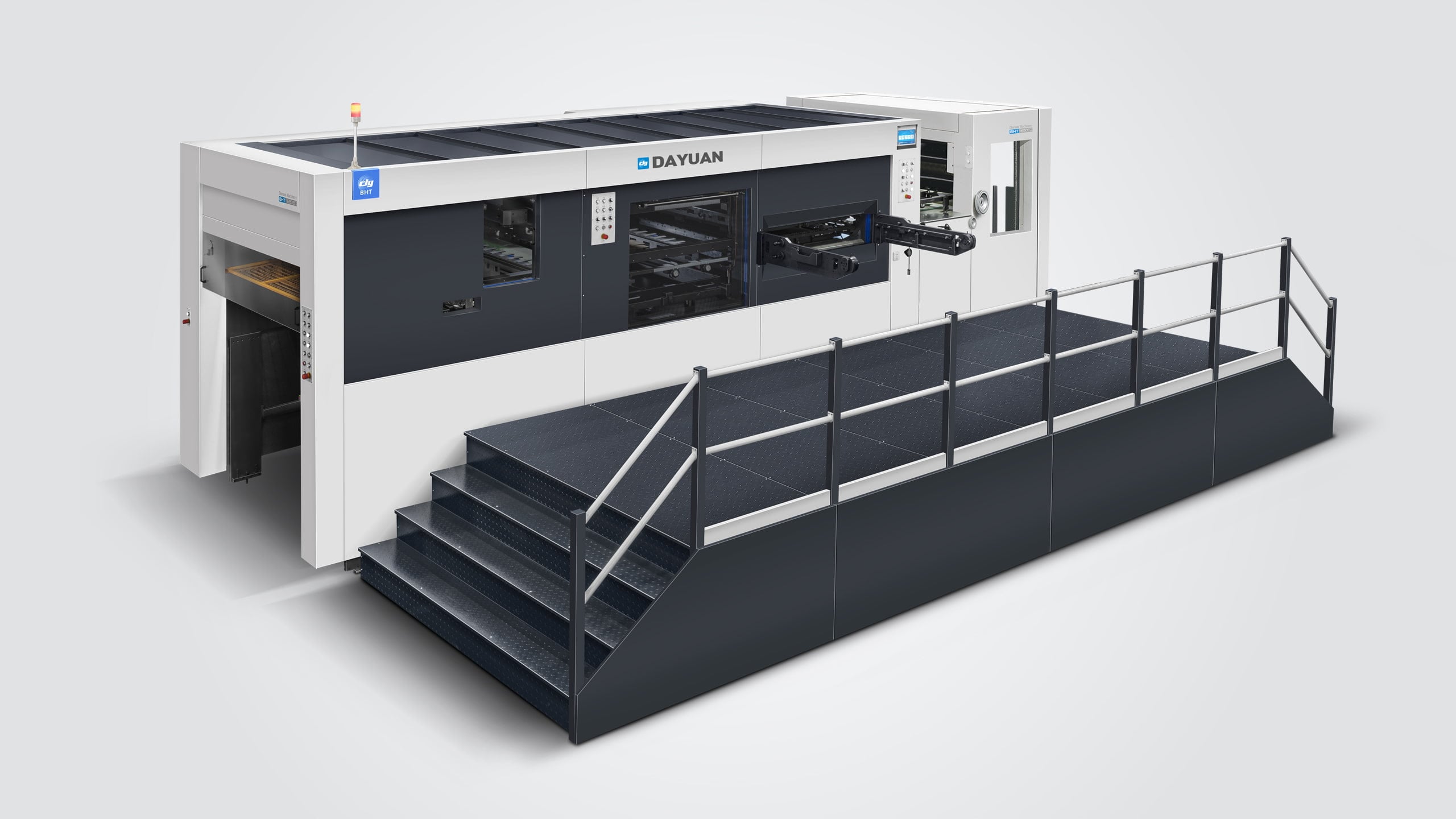

BHT-1500CE
Automatic Die Cutting Machine With Stripping
- Large-format size: 1520×1100mm maximum
- Wide applicability with precision performance
- Advanced 3-frame 4-side waste stripping technology
- Overview
- Technical Parameters
- Related Products
Product Description
Based on in-depth market research, Dayuan introduces this advanced stripping die-cutter featuring (1) Large-format size: 1520×1100mm maximum sheet size, (2) Intelligent automation: User-friendly operation with precision performance and (3) Wide applicability: Perfect for thin paper labels, folding cartons, industrial paperboard, and micro-flute corrugated packaging
Outstanding Production Efficiency
• 6,000 sheets/hour maximum speed with 400-ton pressing force
• 3-frame 4-side waste stripping technology eliminate burrs and loose sheets for flawless production
• 50% faster plate-changing significantly boosts productivity and extends uptime
Superior Cost Efficiency:
• Robust cast-iron construction ensures stabilityy.
• Intuitive HMI (human-machine interface) for user-friendly, error-free operation.
• Complete spare parts supply chain ensures worry-free after-sales support.
 |
 |
 |

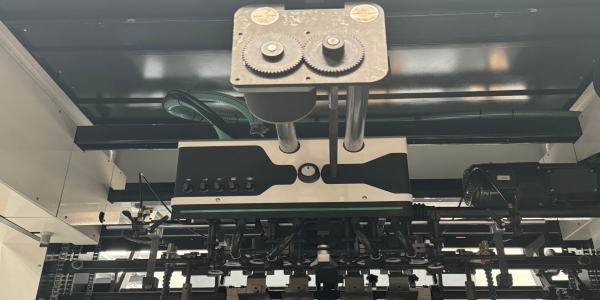

Feeder |

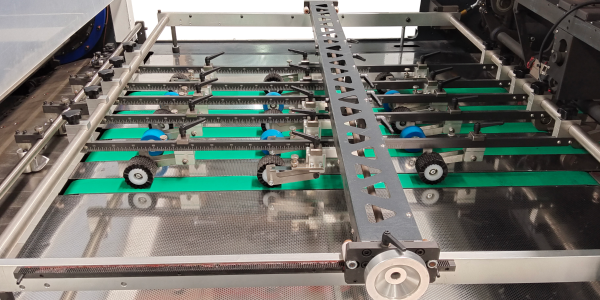

Conveying unit |

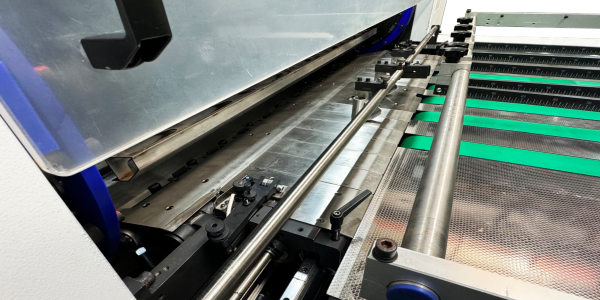

Front gauge & side gauge |
 |
 |
 |

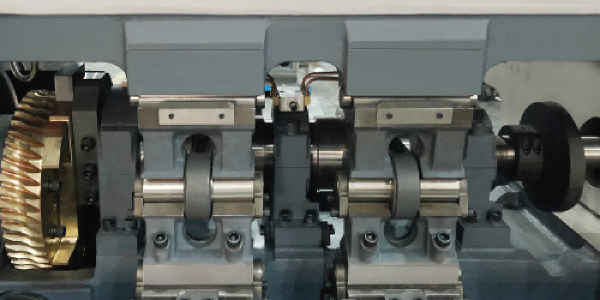

Variable speed worm gear drive device |

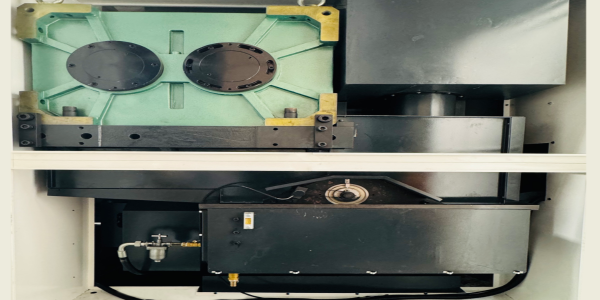

Timing belt driven device |

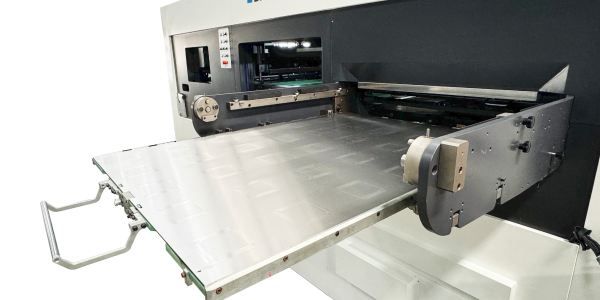

Cutting plate microadjustment device |
 |
 |
 |

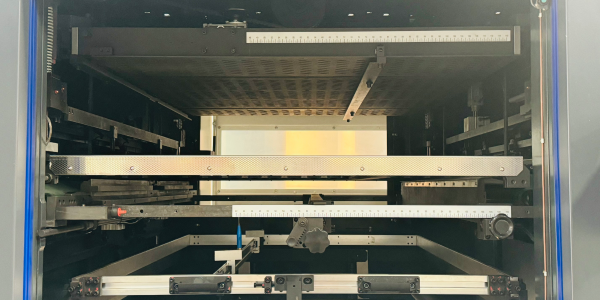

Three layer stripping section |

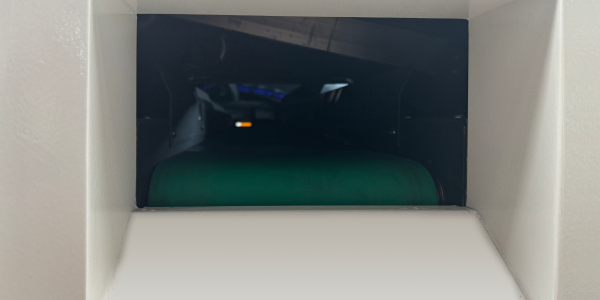

Gripper waste removal device |

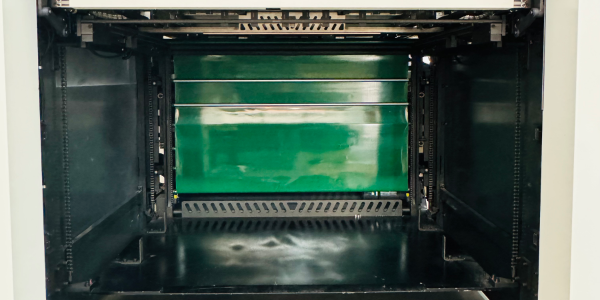

Auto non-stop collecting device |
 |
 |
 |

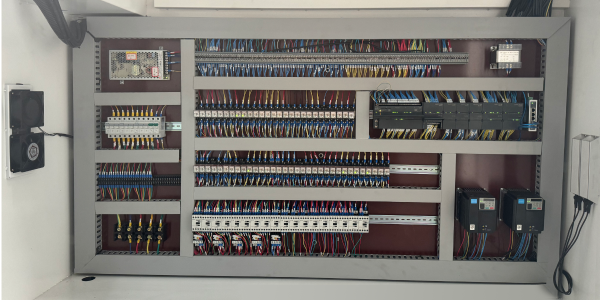

Electrical unit |

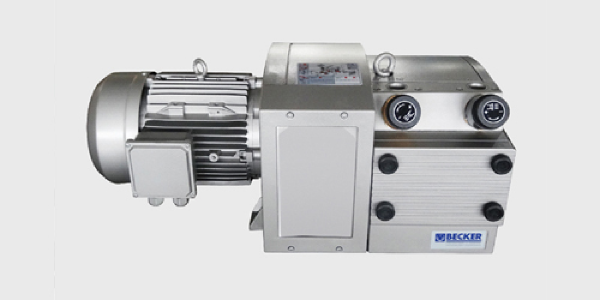

Germany vacuum pump |

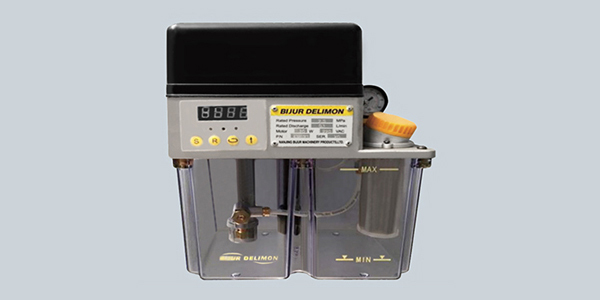

Concentrate lubrication |
Technical Parameters
|
Model |
BHT-1500CE |
|
Maximum Sheet Size |
1520×1100mm |
|
Minimum Sheet Size |
480×480mm |
|
Maximum Cutting Size |
1500×1100mm |
|
Minimum Gripper Margin |
9-17mm |
|
Minimum Width of Cuts |
10-18mm |
|
Cutting Rule Height |
23.8mm |
|
Inner Chase Size |
1600×1145mm |
|
Stock Range |
Cardboard:0.1-2mm |
|
Die Cutting Accuracy |
≤±0.15mm |
|
Max.Cutting Force |
400T |
|
Max.Working Speed |
6000s/h |
|
Maximum Feeder Pile Height |
1800mm |
|
Maximum Delivery Pile Height |
1500mm |
|
Main Motor Power |
18.5KW |
|
Full Load Wattage |
36KW |
|
Air Requirement |
0.6-0.7MPa，≥1m³/min |
|
Net Weight of Machine |
30T |
|
Machine Dimensions（High-stacked Roller Shutter Cardboard Collection）(L×W×H) |
10948×5529×3102mm |
|
Machine Dimensions（Counting Stacked Cardboard Collection）(L×W×H) |
12600×5500×2800mm |
