BHT-1060SCE
Automatic Die Cutting And Creasing Machine With Stripping & Blanking
- Maximize efficiency and reduce costs
- Intelligent blanking system
- Maximum speed: 8,000 sheets/hour
- Overview
- Technical Parameters
- Related Products
Product Description
Achieve fully automated production with the BHT-1060SCE Automatic Die Cutting And Creasing Machine With Stripping & Blanking, engineered to maximize efficiency, reduce costs, and optimize your entire processing operation. Full sheet delivery option ensures easy production planning by selecting final delivery style.
Intelligent blanking system features:
• Sheet separation control
• Automatic separation sheet insert
• Automatic pallet changing
• Non-stop sampling
• Continuous high-speed operation
• Instant batch sorting and counting
Transform your production with substantial labor cost reduction, accelerated production cycles and significantly enhanced profitability
Maximum speed: 8,000 sheets/hour
 |
 |
 |
Feeder(4 suction and 6 delivery) |

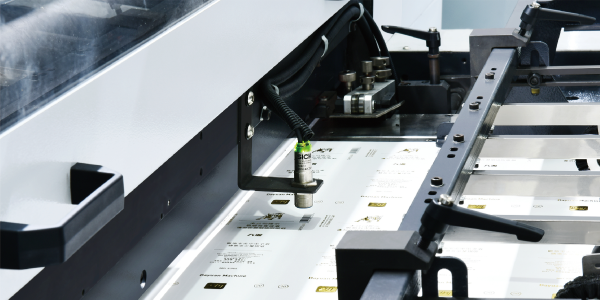

Ultrasonic double sheet detector |

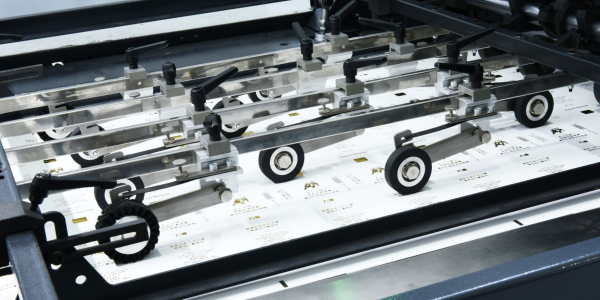

Paper conveying unit |
 |
 |
 |

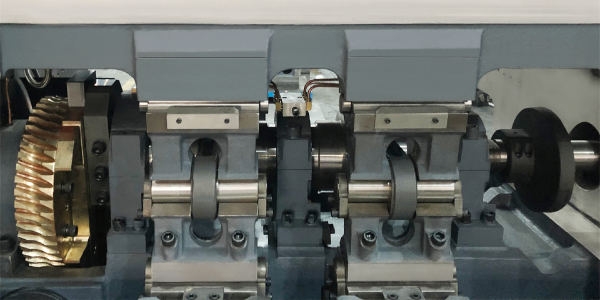

Variable speed worm gear drive device |

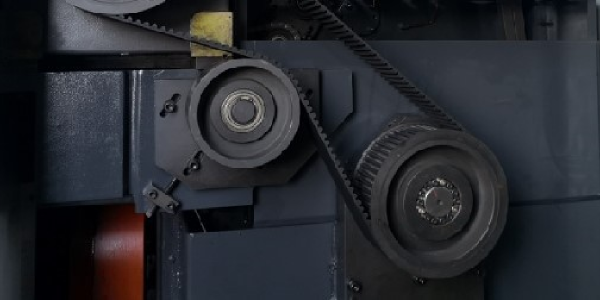

Timing belt driven device |

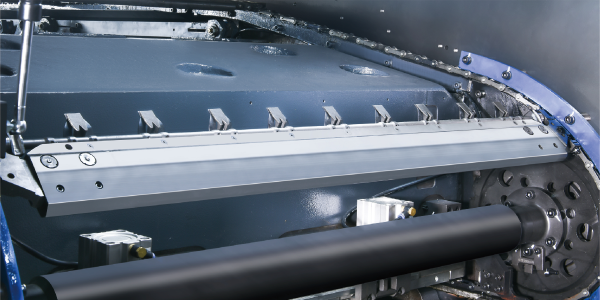

Carbon fiber gripper bar |
 |
 |
 |
Micro-adjustable die cutting plate |

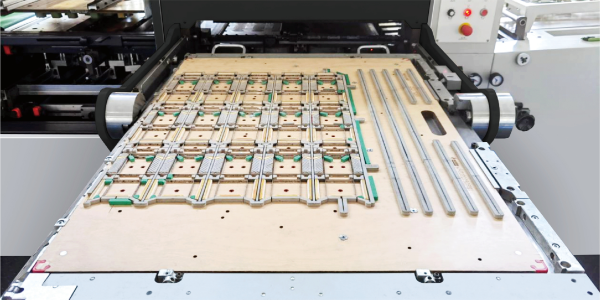

Micro-adjustable frame with quick locking device |

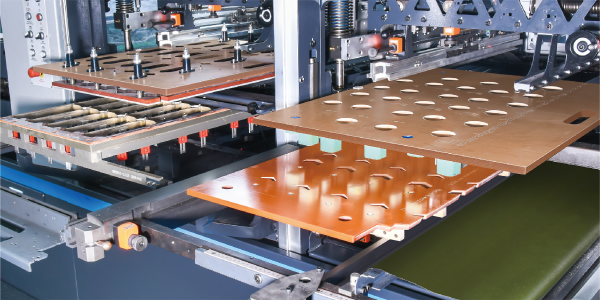

Advanced plate quick locking device |
 |
 |
 |
Full sheet delivery |

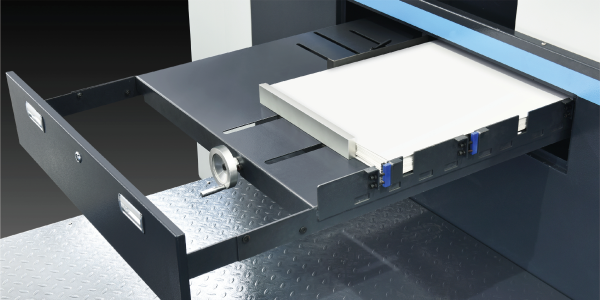

Auto separation sheet insert |

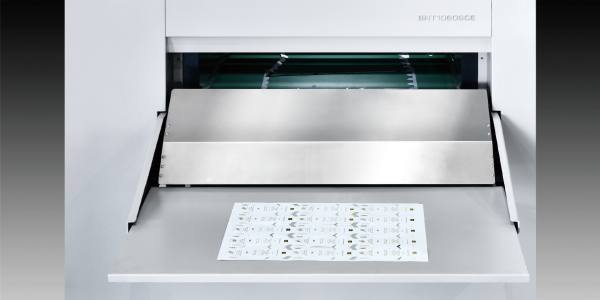

Non-stop sampling |
 |
 |
 |
Electrical unit |
Germany vacuum pump |
Auto lubrication system |
|
||

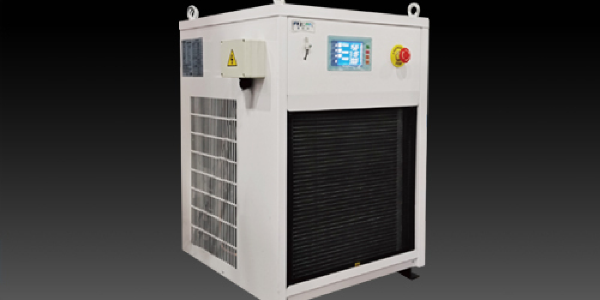

Main unit cooling/lubrication mechanism |
Technical Parameters
|
Type |
BHT-1060SCE |
|
Maximum Sheet Size |
1060×760mm |
|
Minimum Sheet Size |
400×350mm |
|
Maximum Cutting Size |
1060×745mm |
|
Minimum Gripper Margin |
9-17mm |
|
Minimum Width of Double Cuts |
5mm |
|
Cutting Rule Height |
23.8mm |
|
Inner Chase Size |
1080×770mm |
|
Stock Range |
Cardboard: 80-2000g/m², 0.1-2mm |
|
Die Cutting Accuracy |
≤±0.1mm |
|
Max.Cutting Force |
300T |
|
Max.Working Speed |
8000s/h |
|
Maximum Pile Height at Feeder-Normal Mode |
1800mm |
|
Maximum Pile Height at Feeder-Non-stop Mode |
1520mm |
|
Maximum Pile Height at Delivery |
1580mm |
|
Main Motor Power |
15KW |
|
Full Load Wattage |
26KW |
|
Air Requirement |
0.6-0.7MPa，≥0.37m³/min |
|
Net Weight of Machine |
22T |
|
Machine Dimensions(L×W×H) |
10508×6016×2891mm |
|
Machine Dimensions（Including Die Preloader）(L×W×H) |
10508×6916×2891mm |
